Retailers planning a new fixture run almost always ask the same three questions: What's the standard on-center spacing? What panel widths are available? And how does groove spacing affect what accessories will actually fit? This guide answers all three, plus how to calculate spacing for your specific wall and how material choice changes your options.
Key Takeaways
- 3-inch on-center spacing is the retail standard; 1-, 4-, 6-, and 8-inch options fit specialized merchandising
- Panel width and groove spacing control weight capacity and display flexibility
- Steel and aluminum slatwall hold tighter, more consistent tolerances than MDF
- Match spacing to merchandise type, weight load, and desired display density
What Is Slatwall Spacing and Why It Matters
On-center (OC) spacing is the distance measured from the center of one groove to the center of the next. It's the single most important spec when planning a display wall, because it dictates how many hooks, shelves, or brackets you can mount per linear foot.
Tighter spacing means more mounting points. A panel with 1-inch OC grooves gives you far more placement flexibility than one with 6-inch spacing. That density helps when you're merchandising small accessories like jewelry, phone cases, or hardware fasteners.
Wider spacing suits bulkier items like sporting goods, tools, or seasonal display bins that don't need a hook every few inches.

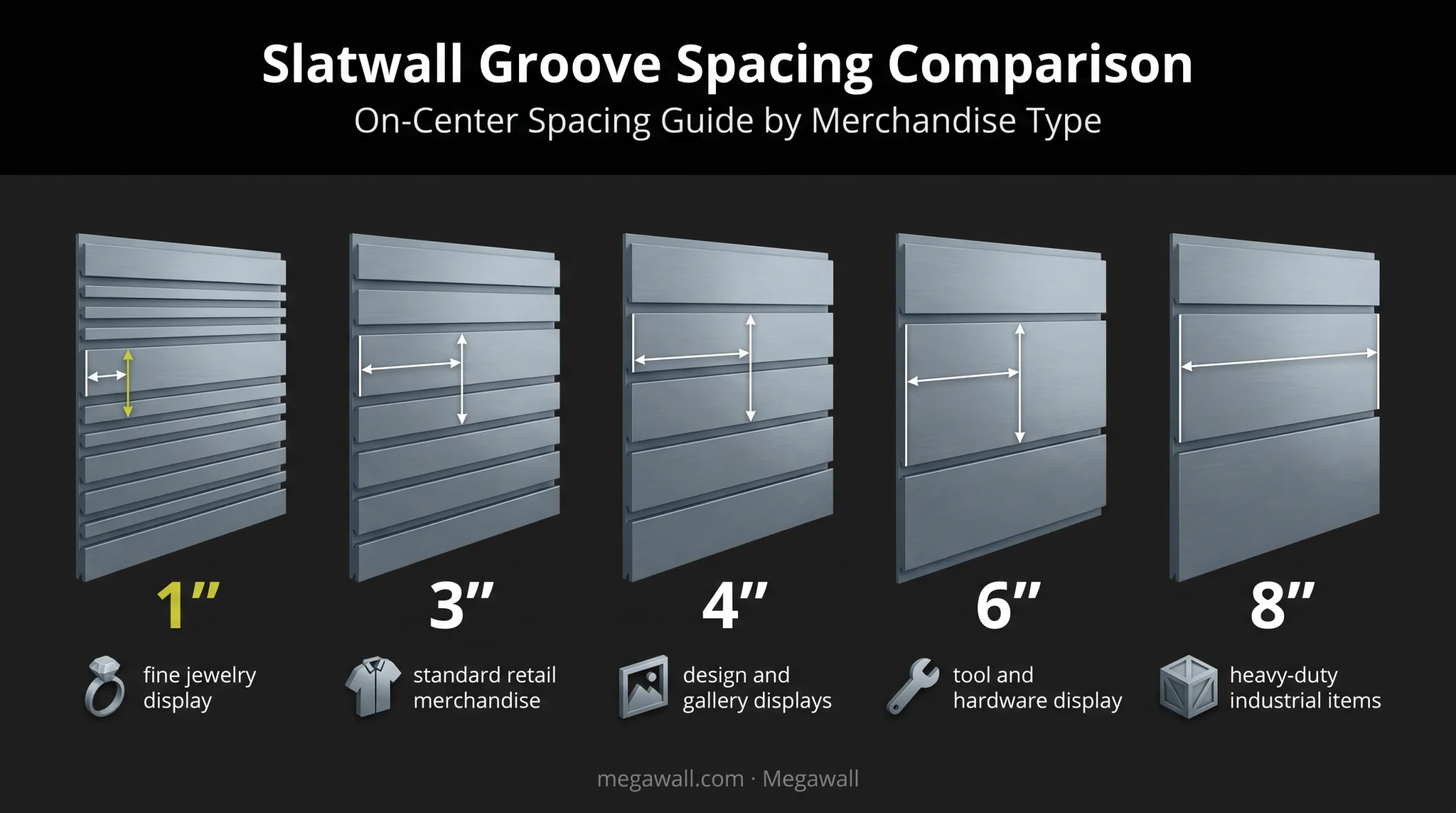

Common Slatwall Spacing Standards
Industry-standard spacing options include:
- 1 inch — maximum density for small accessories; common in aluminum systems
- 3 inches — the retail industry standard, used across most MDF and standard steel systems
- 4 inches — common in certain design-focused panel systems
- 6 inches — used for bulkier merchandise runs
- 8 inches — reserved for large, heavy-duty display needs
Most standard panels run 4 feet high by 8 feet wide. The spacing you choose determines exactly how many usable grooves that panel gives you.
Standard Slatwall Panel Widths and Slat Dimensions
Panel sizing is consistent across the industry, with 4x8 ft and 2x4 ft sections being the most common. Groove widths typically fall in the 1 to 2-inch range, though this varies by manufacturer and directly affects which inserts and accessories will fit.
Here's how spacing choice changes your groove count on a standard 48-inch tall panel:
| OC Spacing | Approximate Usable Grooves (48" panel) |
|---|---|
| 1 inch | 40+ |
| 3 inches | 15-16 |
| 6 inches | 7-8 |
| 8 inches | 5-6 |
Pitch intervals (panel height ÷ spacing) don't always equal usable grooves. Edge margins and half-grooves at the panel's top and bottom reduce the practical count slightly.
Metal Slatwall Spacing Options
Megawall's steel slatwall uses 3-inch OC spacing across interlocking panel sections. Its patented aluminum line offers 1-inch, 1-3/8-inch, 1-1/2-inch, 2-inch, and 3-inch on-center options. That 1-inch spacing delivers merchandising density standard MDF can't match, which helps with small-format products that need dense, flexible hook placement.

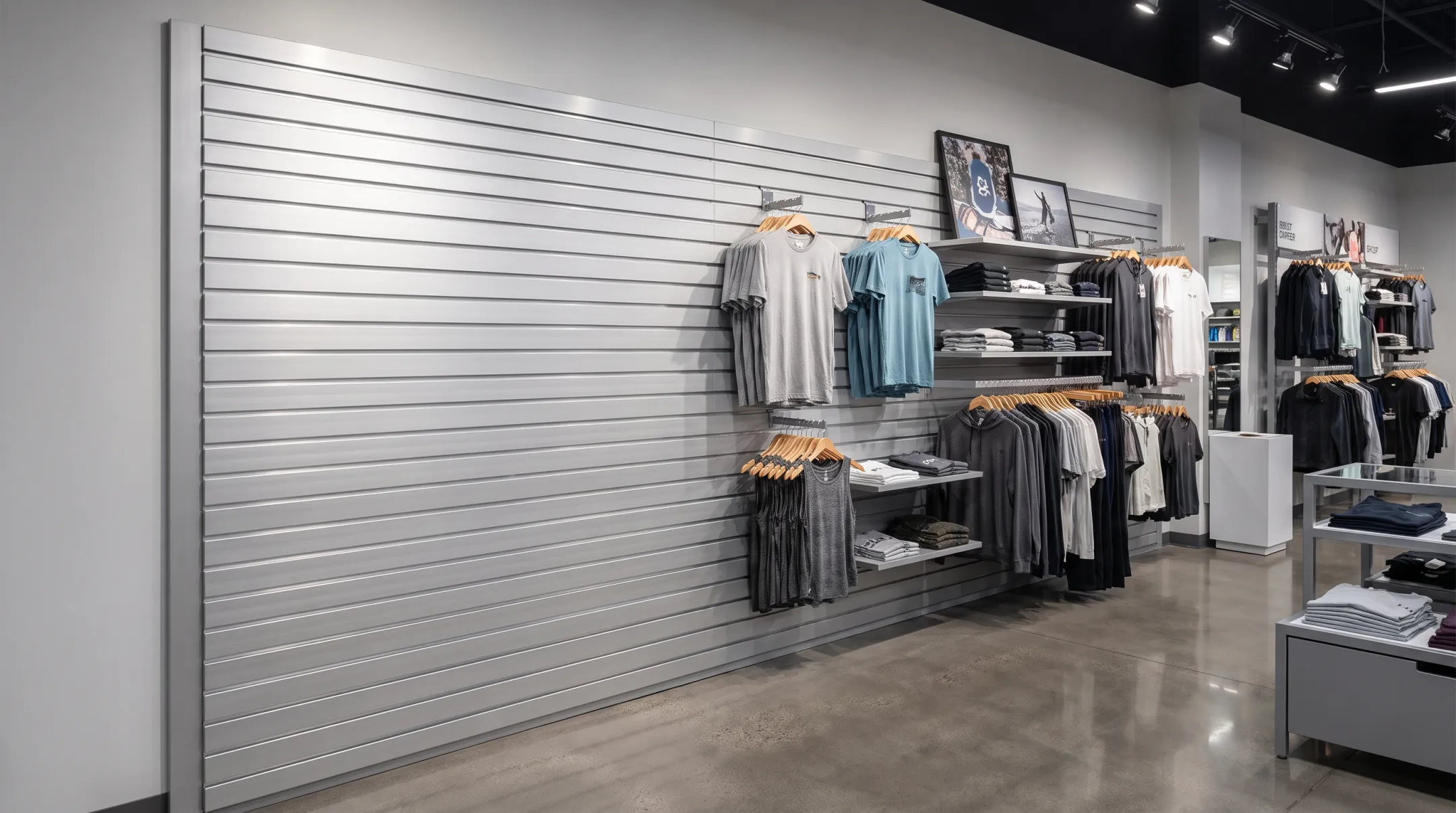

Concealed fastener systems also matter for appearance. Megawall's hidden-fastener aluminum panels (available in 1-inch, 1-1/2-inch, and 3-inch configurations) create seamless runs up to 8 feet with no visible hardware interrupting the spacing pattern.
Factors That Determine the Right Spacing for Your Store
The right spacing depends on several factors working together:
- Merchandise type and size: Narrow spacing (1-3 inches) suits small accessories; wider spacing (6-8 inches) works better for bulky items like power tools or sporting equipment
- Weight load requirements: Steel slatwall holding over 50 lbs per linear foot supports tighter spacing without losing strength, which standard MDF often can't match at the same density
- Store layout goals: Tighter spacing creates a fuller, denser retail look; wider spacing gives an open, minimalist feel
- Seasonal inventory needs: Flexible spacing supports fast reconfiguration between holiday resets and everyday merchandising
Those spacing choices show up at the register. POPAI's 2014 Mass Merchant Shopper Engagement Study found that 82% of purchase decisions are made in-store, up from 76% in its earlier grocery-channel research.
Separately, research on in-store display optimization published in the Journal of Retailing linked smarter display allocation to an average 11.15% revenue increase.
How to Calculate Slatwall Spacing for Your Wall

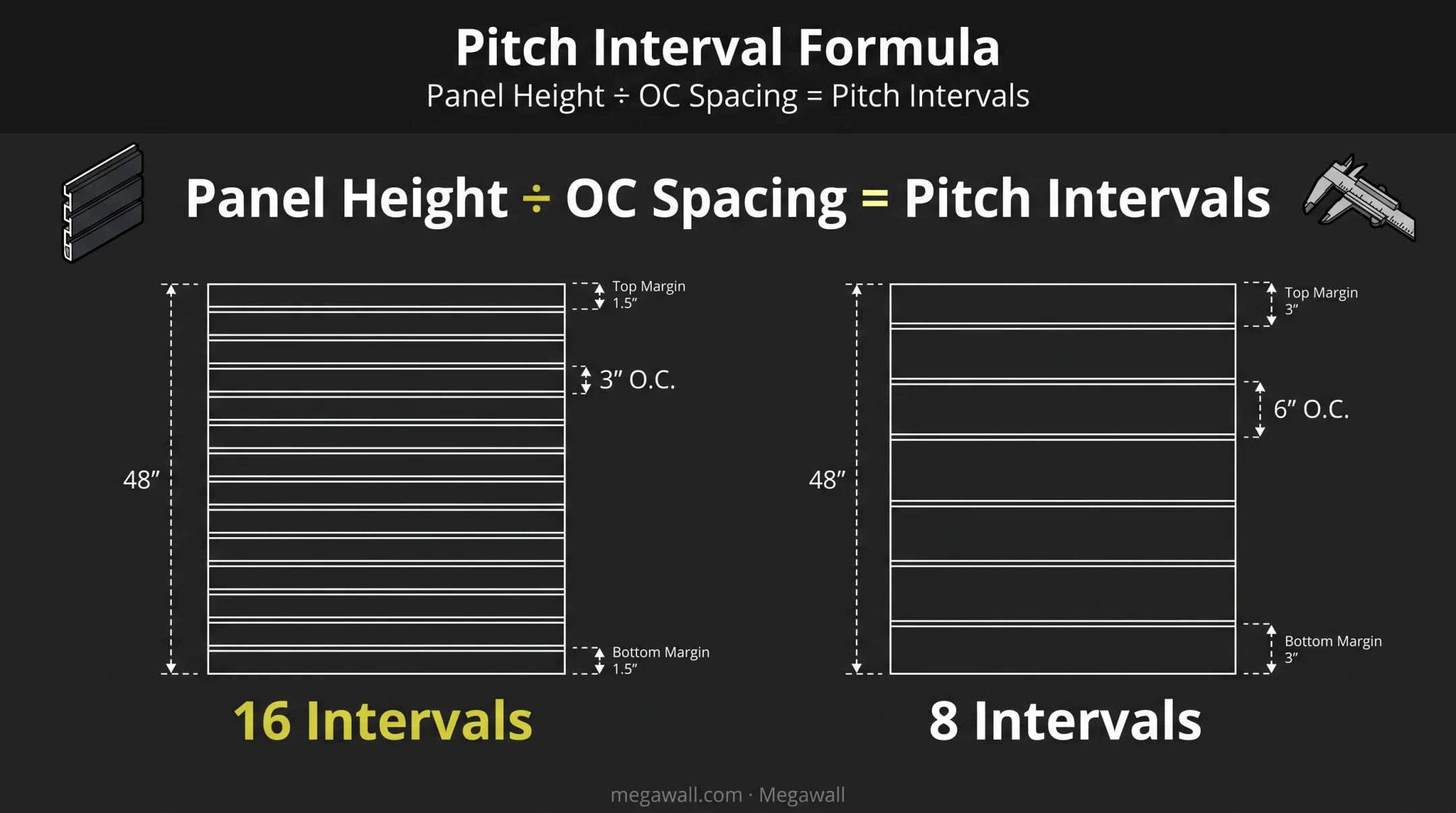

Use this formula to plan groove count:
Panel height ÷ chosen on-center (OC) spacing = pitch intervals
For example, on a 48-inch panel:
- 3-inch spacing: 48 ÷ 3 = 16 pitch intervals (typically 15–16 usable grooves after edge margins)
- 6-inch spacing: 48 ÷ 6 = 8 pitch intervals (roughly 7–8 usable grooves)
Always leave margin at the top and bottom of the panel for structural framing before counting your final usable groove total. Manufacturers vary on how they handle edge grooves, so check the spec sheet rather than assuming a clean division.
Choosing the Right Slatwall Material for Your Spacing Needs
Material choice shapes durability and how consistent your spacing tolerances stay over time.
- MDF: Budget-friendly and widely available, but more prone to dimensional drift over time—especially in humid environments
- Steel: Precise, repeatable spacing tolerances; Megawall steel slatwall holds over 50 lbs per linear foot at 3-inch OC
- Aluminum: Tighter spacing options (down to 1 inch OC), lightweight and corrosion-resistant; also rated over 50 lbs per linear foot
Aluminum slatwall made with 50%+ recycled content is also a LEED-certified option for retailers whose build-out standards require sustainable materials.
Installation Tips for Proper Slatwall Spacing
Getting spacing right on paper means nothing if installation throws it off. A few practical rules:
- Mount into wall studs wherever possible; use furring strips for uneven or non-stud walls to keep grooves aligned.
- Use a level and spacer tool across multi-panel runs so grooves line up seamlessly from panel to panel.
- Check the manufacturer's spec sheet before ordering accessories — groove spacing must match the hooks, shelves, and brackets you plan to use.
Skipping the spec-sheet check is the most common mistake we see. A hook designed for 3-inch spacing simply won't seat correctly on a 1-inch aluminum system, no matter how it looks in the catalog photo.
Frequently Asked Questions
What is the recommended spacing for slatwall?
Three-inch on-center spacing is the industry standard for most retail applications. It balances mounting flexibility with structural integrity for typical merchandise loads.
What is the standard width of a slatwall panel?
Standard panels typically measure 4 feet by 8 feet, though custom sizes are available from most manufacturers.
Is slatwall stronger than pegboard?
Yes. Metal slatwall, especially steel and aluminum systems, is significantly stronger and more stable than pegboard, particularly for heavier merchandising loads.
How many slats fit on a standard slatwall panel?
A 48-inch tall panel with 3-inch spacing yields roughly 15-16 usable grooves, after accounting for top and bottom edge margins.
Can slatwall spacing be customized?
Yes. Manufacturers like Megawall offer patented spacing options, including 1-inch on-center aluminum systems, alongside 1-3/8-inch, 1-1/2-inch, and 2-inch configurations for specialized merchandising needs.
