Many retailers still default to filling every inch of floor space with product, rather than designing intentional flow. That approach backfires. A 2023 study tracking brick-and-mortar shoppers found that layout changes drove footfall up 46%, dwell time up 11%, and purchase intention up 29% month-over-month, according to research published through Bradford Scholars. That's the power of design done right.
This guide covers layout fundamentals, core principles, the main layout types, a step-by-step design process, and how fixture choices — including checkout counter placement — affect the whole plan.
Key Takeaways
- Layout design uses psychology, merchandising, and operations to steer pathing, dwell time, and purchase decisions
- No single best layout fits every store: grid, loop, free-flow, and hybrid designs serve different formats
- Fixtures like slatwall systems directly affect merchandising flexibility and durability
- Checkout counter placement and dimensions are often overlooked yet shape queue flow and conversion
- The strongest layouts stay flexible so teams can reconfigure for seasonal shifts and new performance data
What Is Retail Store Layout Design (and Why It Matters)
Retail store layout design is the strategic arrangement of fixtures, products, and open space to guide how customers move through a store. It's distinct from store design, which covers broader branding elements: lighting, decor, color schemes, and overall atmosphere. Layout is about circulation and spatial flow. Design is everything layered on top of it.
The Entrance Isn't As Simple As You Think
Retail folklore says the first 10-15 feet (the "decompression zone") should stay product-free while shoppers transition mentally into the store. But field research complicates that rule.

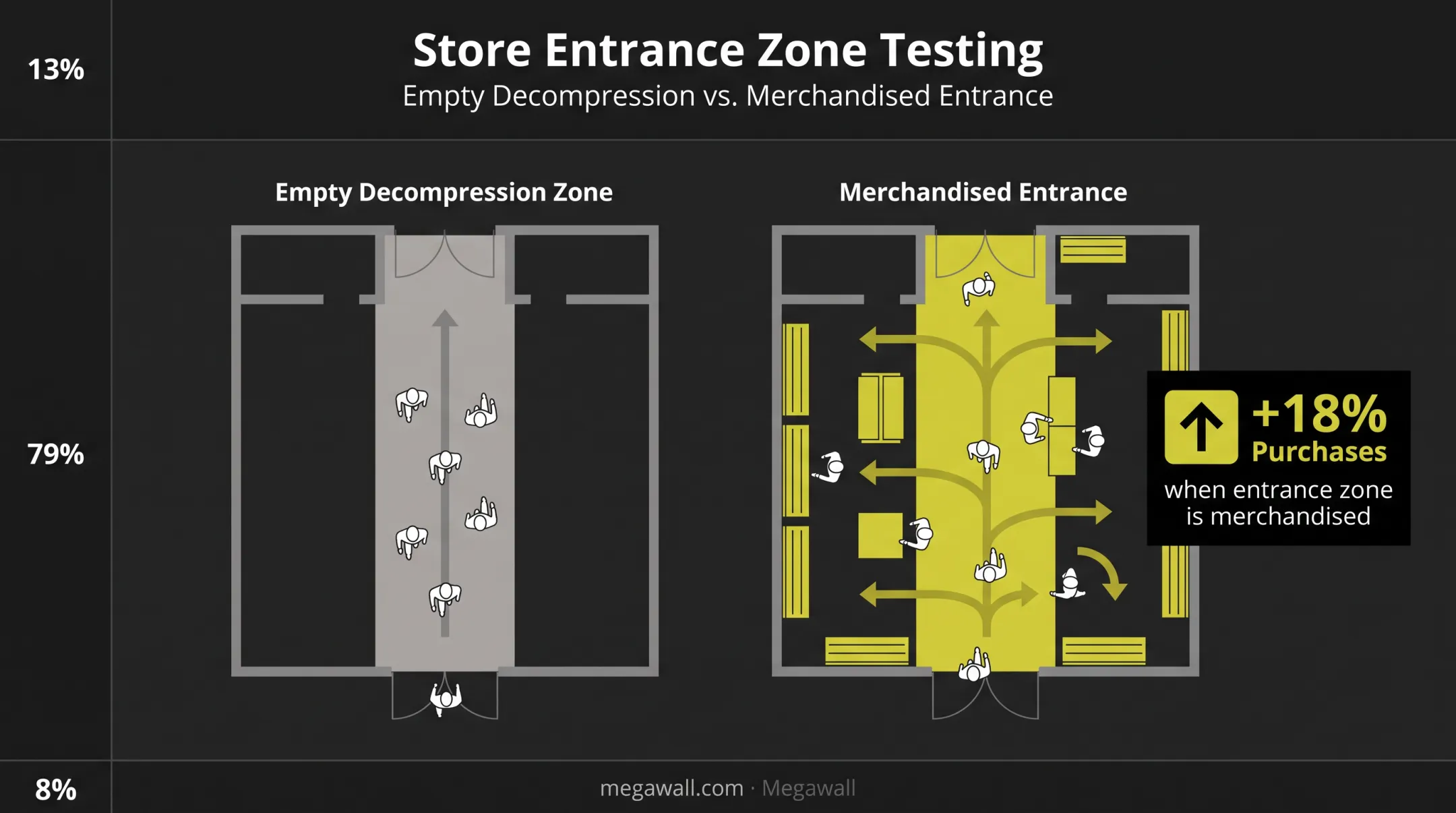

A study of 715 home-goods shoppers found that placing products at the entrance actually increased purchases, contradicting the universal no-merchandise doctrine, according to research from Aarhus University. The takeaway: treat your entrance as a testable zone, not a fixed rule.
That same test-and-learn mindset applies across the whole floor. Layout shapes revenue in several concrete ways:
Why layout matters for the bottom line:
- Directs traffic toward high-margin and promotional products
- Encourages impulse purchases through strategic sightlines
- Supports cross-selling by grouping related categories
- Influences dwell time, which correlates with basket size
Layout is never "finished." It should shift with seasonal resets, new inventory, and changing customer behavior. That's why modular fixtures matter more than fixed installations.
Key Principles of Retail Store Layout and Design
Customer Flow and the "Right Turn" Myth
The idea that most shoppers turn right upon entering, and that power walls should sit accordingly — isn't as fixed as it sounds. Three eye-tracking experiments found that turning behavior shifted based on trip length, shopping-list length, and store layout cues, according to a 2022 study in the Journal of Retailing and Consumer Services. Test your own store's flow before committing to a power wall location.
Zoning and Product Visibility
Group related categories together. It reduces search friction and naturally supports cross-selling. Position high-margin and promotional items in sightlines shoppers hit early and often, not buried in a back corner.
Balancing Density, Access, and Comfort
- Density vs. openness: Overcrowded floors overwhelm; too-sparse layouts feel empty and cheap

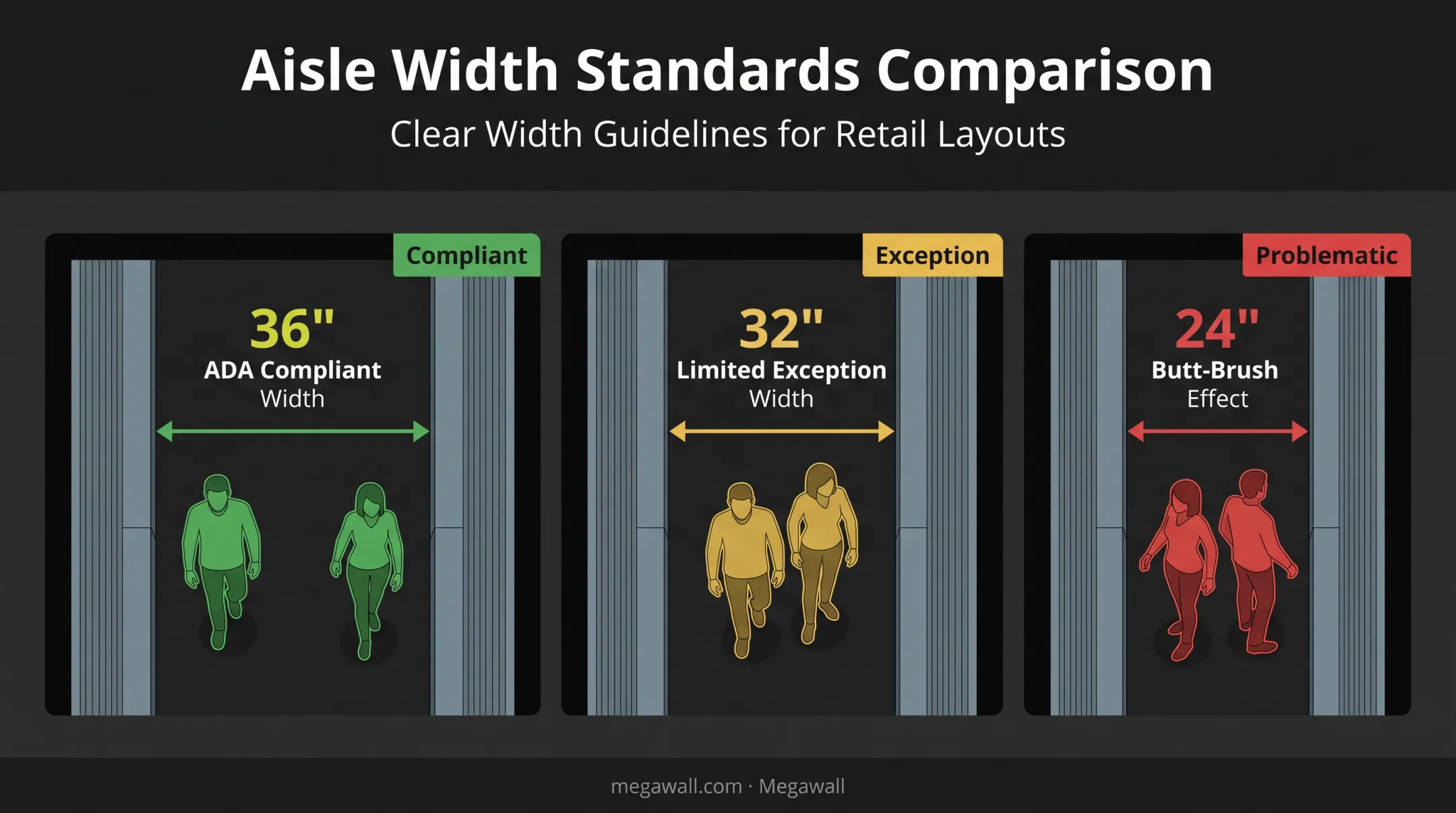

- Aisle width: Narrow aisles trigger the "butt-brush effect," where shoppers avoid contact from behind and bypass products entirely
- Accessibility: ADA rules require a minimum 36-inch clear walking width on accessible routes, with a limited 32-inch exception for short stretches, according to the 2010 ADA Standards for Accessible Design
- Flexibility: Modular fixtures let you reconfigure for seasonal resets without rebuilding the floor plan
Types of Retail Store Layouts
There's no universal "best" layout: the right choice depends on store size, product mix, and shopping mission.

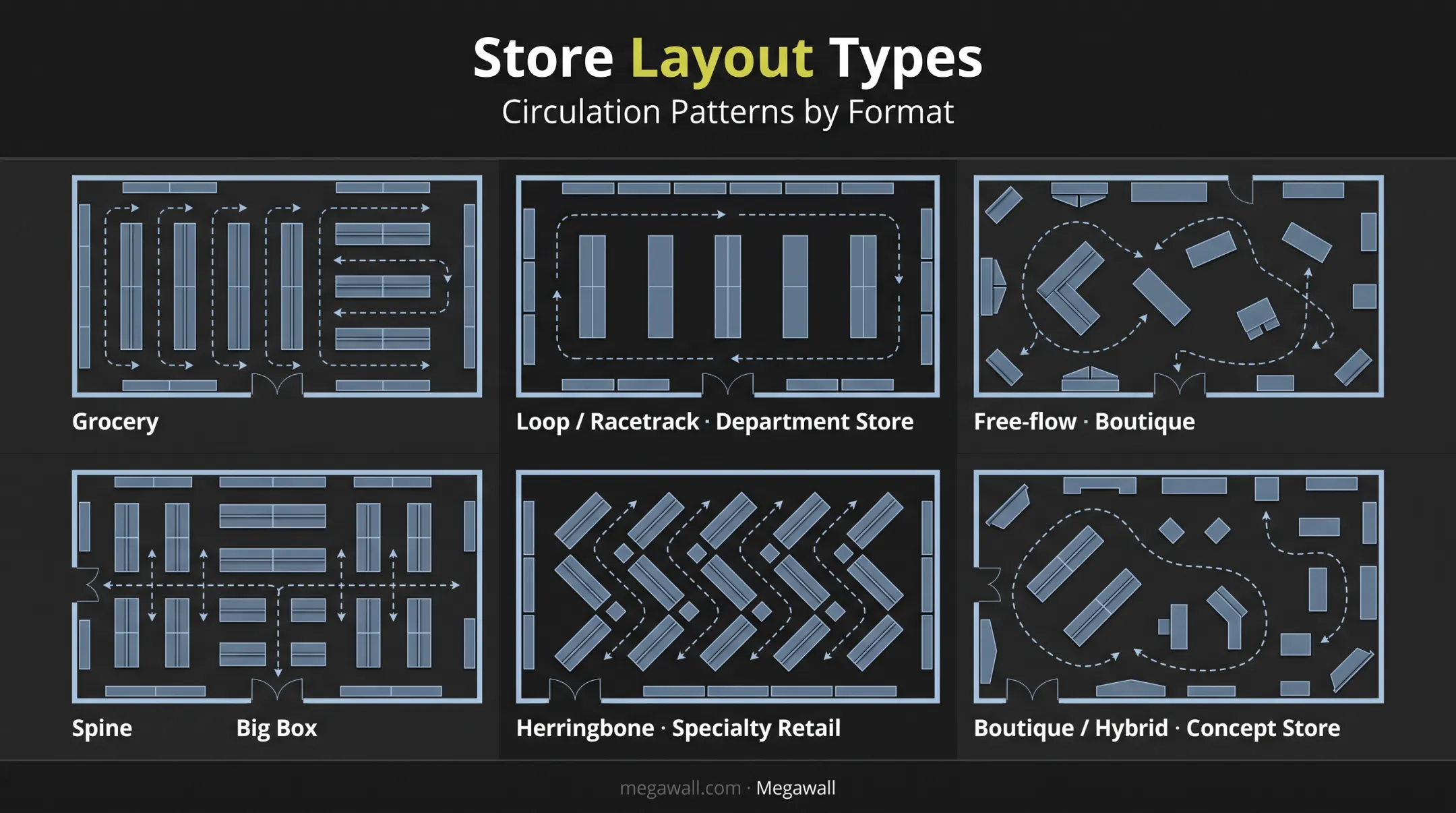

| Layout | Best Fit | Key Trade-off |
|---|---|---|
| Grid | Grocery, hardware, big-box | High display capacity, but repetitive and can feel congested |
| Loop/Racetrack | Boutique to mid-size stores | Guides full-store exposure, but frustrates quick-trip shoppers |
| Free-flow | Boutiques, upscale retail | Supports discovery, but shoppers can lose orientation |
| Spine | Narrow footprints | Clear central path, but can bottleneck in the middle |
| Herringbone | Small stores needing display density | Maximizes space, weaker sightlines on side aisles |
| Boutique/Hybrid | Multi-category retailers | Combines styles for different departments, but transitions need consistent logic |
Quick guidance by shopping mission:
- Quick-trip (convenience, hardware): grid or spine for speed and capacity
- Browse-heavy (fashion, home goods): loop or free-flow to support discovery
- Mixed mission (sporting goods, general merchandise): hybrid layouts by department
How to Design a Retail Store Layout: A Step-by-Step Process
Analyze your space and customers. Study store size, shape, and shopper demographics before picking a layout style. A quick-trip convenience shopper behaves nothing like a browsing boutique customer.
Map the customer journey. Trace the path from entrance through the decompression zone, power wall, aisles, and checkout. Note where bottlenecks or dead zones might form.
Plan zoning and merchandising placement. Group categories logically and reserve high-visibility spots for seasonal or promotional items, using durable slatwall panels and modular fixtures that can be reconfigured as merchandising needs change.
Test and refine with data. RetailNext recommends using foot traffic analytics and heat mapping to spot friction points before a full rollout. Pilot changes in one section, measure the result, then scale what works.
Traffic patterns often surprise retailers: wall-mounted displays can see significantly less foot traffic than floor fixtures placed in high-visibility zones. Let the data guide placement decisions instead of assumptions about where shoppers will look.
Choosing Fixtures and Checkout Counter Dimensions
Fixture Choice Drives Merchandising Flexibility
The fixtures you choose determine how easily you can adapt to new merchandise, seasonal resets, and heavier product loads. Many retailers underinvest here. Conventional MDF displays break, warp, and delaminate faster than metal alternatives. Megawall's slatwall systems, for example, use a concealed-fastener design with interlocking sections. That creates a seamless face across runs up to 8 feet long, with no visible hardware breaking up the product presentation. Steel and aluminum versions both hold over 50 lbs per linear foot. The aluminum line uses over 50% recycled content and carries LEED certification. For retailers reworking existing gondola shelving rather than replacing it, retrofit systems like NuPanel drop modular aluminum panels into standard 36-inch or 48-inch gondola uprights, so you can reset merchandising zones without tearing out the fixture entirely. Modular fixture styles worth knowing:

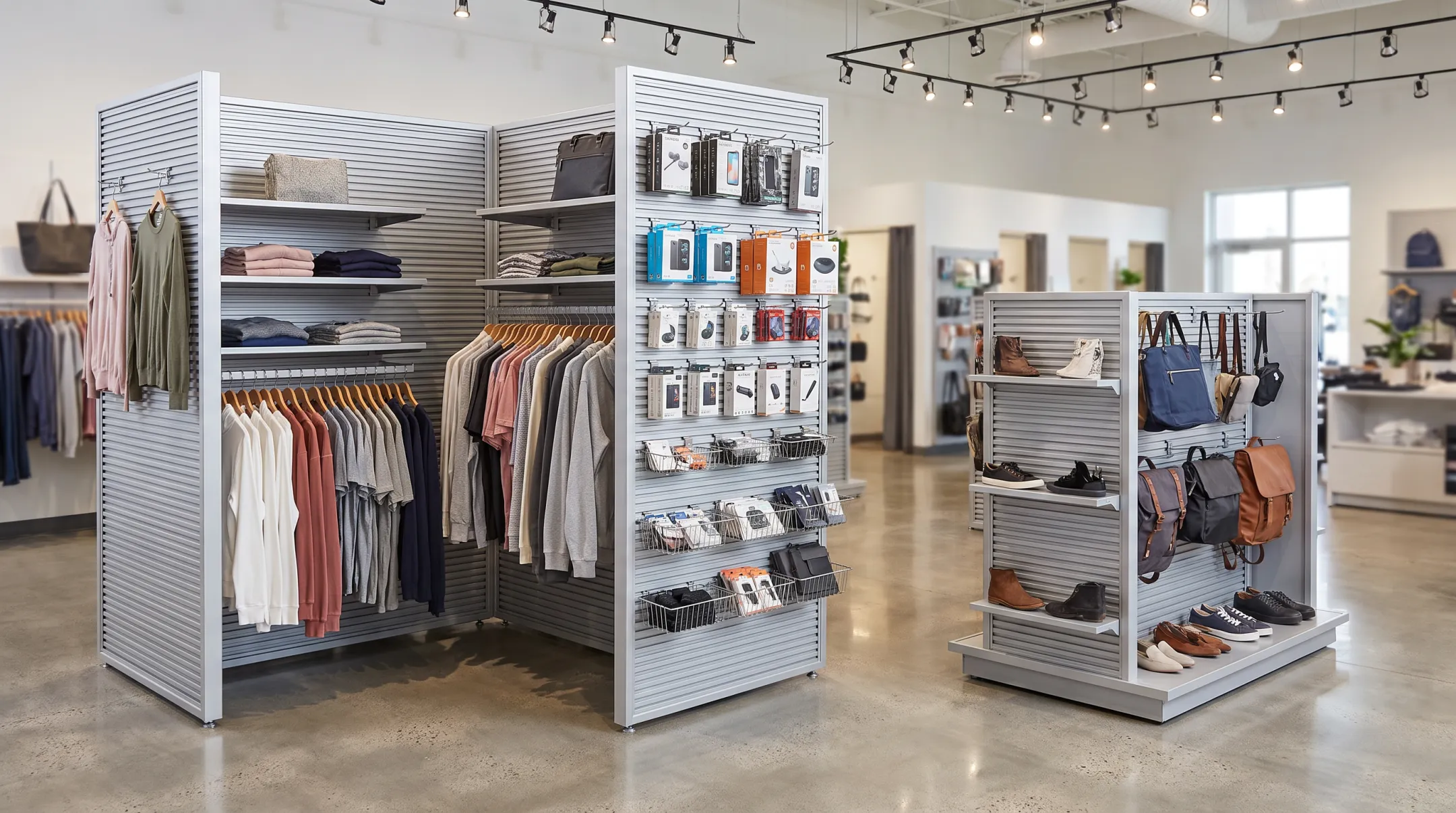

- H-Frame — four-sided, ideal for broad assortment display
- L-Frame — focal-point display for promotional or featured items
- T-Frame — two-sided, good for aisle and cross-category merchandising
- Pinwheel — four vertical surfaces, best for tight floor space
Checkout Counter Standards and Placement

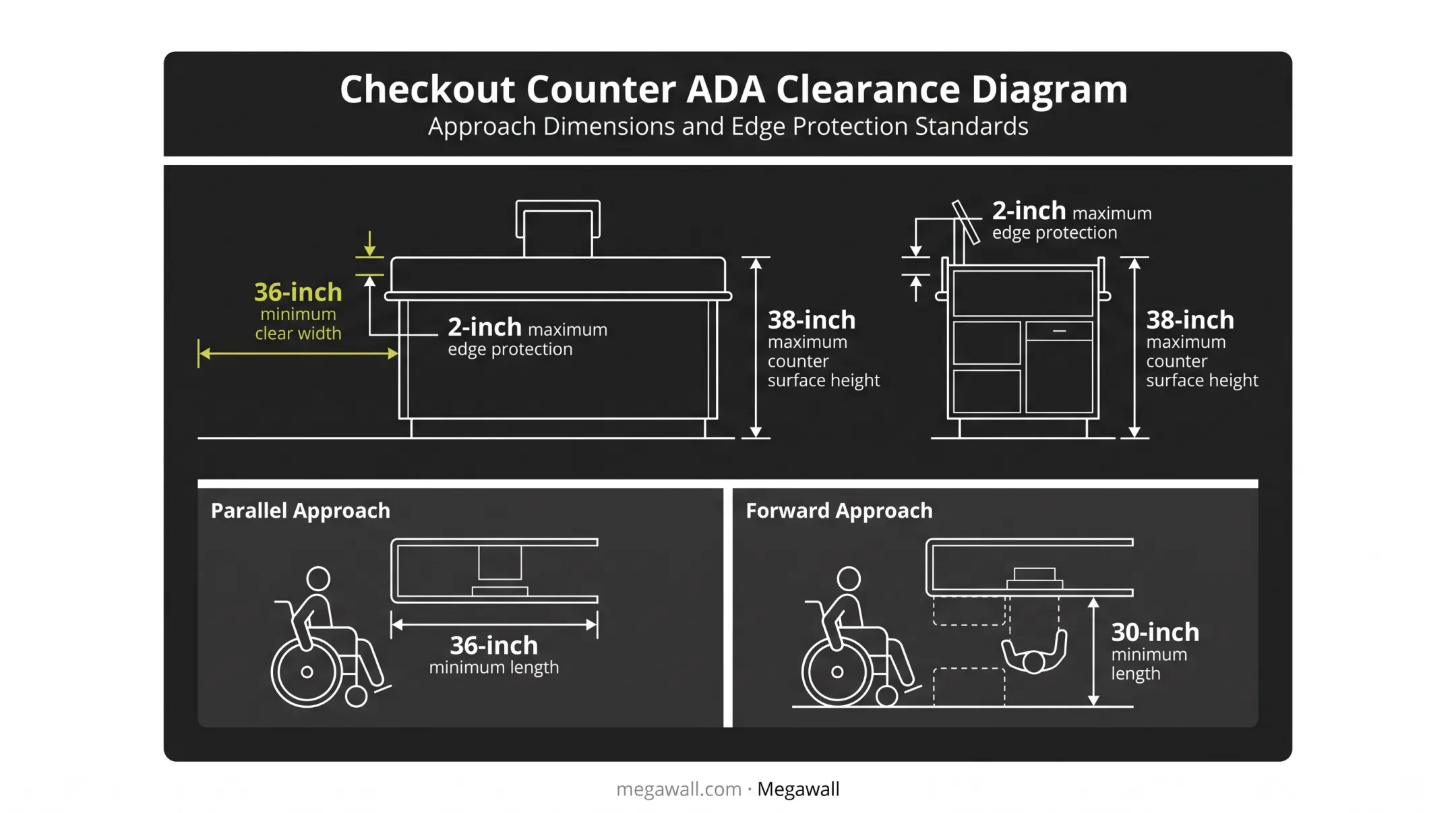

Checkout aisles must meet ADA Standards for Accessible Design accessible-route rules:
- 36-inch minimum clear width
- Counter surface height at 38 inches maximum
- Edge protection no more than 2 inches on the aisle side For service counters, plan either a parallel approach (36-inch minimum length) or a forward approach (30-inch minimum length with knee and toe clearance). Checkout placement near the exit supports faster transactions and loss-prevention visibility. Placing it deeper in-store extends browsing exposure but requires stronger sightlines from staff. Fixture choice and checkout layout work together. When you select fixtures, prioritize:
- Fire-code compliance
- Easy cleaning and long-term durability
- Load capacity matched to product weight
- Modularity for seasonal resets
