For retail fixtures, structural brackets, or any aluminum component, the finish you choose affects cost, appearance, and how long the part lasts. Get it wrong, and you either overpay for protection you don't need or underspend on a surface that can't handle its environment. This article breaks down what mill finish actually is, where its limits sit, and how it compares to anodized, brushed, and painted alternatives.
TL;DR
- Mill finish aluminum is raw, uncoated metal straight from extrusion or rolling
- Strong formability and conductivity; weaker corrosion and abrasion resistance
- Dull gray look with die lines, tooling marks, and possible white oxidation
- Best for hidden, industrial, or budget uses; coat for traffic or corrosion
- Match finish to use case, exposure conditions, and required service life
What Mill Finish Aluminum Represents
Mill finish aluminum is exactly what its name implies: the surface the metal has right after it leaves the mill rollers or extrusion die. No polishing. No anodizing. No coating applied. Gabrian describes it as the original, unpolished state of the metal, while Wrisco characterizes it as aluminum in its natural post-production condition.
Mill finish is a starting condition, not a performance specification. It's often the base material that gets painted, anodized, or brushed later.
The Aluminum Association's designation system classifies it under "As Fabricated," with the mechanical designation M10 labeled "Unspecified." If you're specifying mill finish, you're accepting whatever surface texture, die lines, and minor imperfections come with that batch.
What Changes Mill Finish in Real Projects
Mill finish doesn't behave the same way in every project. Several variables shift the outcome:
- Alloy selection — 6061, 3003, and 1100 each bring different hardness and corrosion behavior
- Manufacturing tolerances — die lines, tooling marks, and surface smoothness vary between production batches
- Environmental exposure — humidity, salt air, and UV accelerate oxidation over time
- Handling and shipping — moisture trapped during transit can cause white, powdery oxidation spots without protective packaging
Kaiser Aluminum's technical data shows the spread clearly: 1100-O sits at a Brinell hardness of 23 with an "A" corrosion rating, while 6061-T6 reaches 95 Brinell with a "B" rating.
Research from Lawrence Livermore National Laboratory confirms bare aluminum forms a natural oxide layer almost immediately, and ambient humidity controls how that oxide interacts with moisture. Lower humidity slows corrosion; higher humidity speeds it up—so alloy choice and transit packaging matter as much as the finish label itself.
Key Technical Properties of Mill Finish Aluminum
Corrosion Resistance
Mill finish aluminum relies entirely on the thin oxide layer that forms naturally when the metal contacts air. That layer measures roughly 2-3 nanometers, according to Precision Coating's technical data. It offers baseline protection, but it's not designed to withstand sustained moisture, salt exposure, or aggressive pH conditions.
Without an added barrier, mill finish surfaces can develop white oxidation spots, especially in humid or coastal environments. This isn't a defect. It's the expected result of unprotected aluminum reacting with moisture and air.

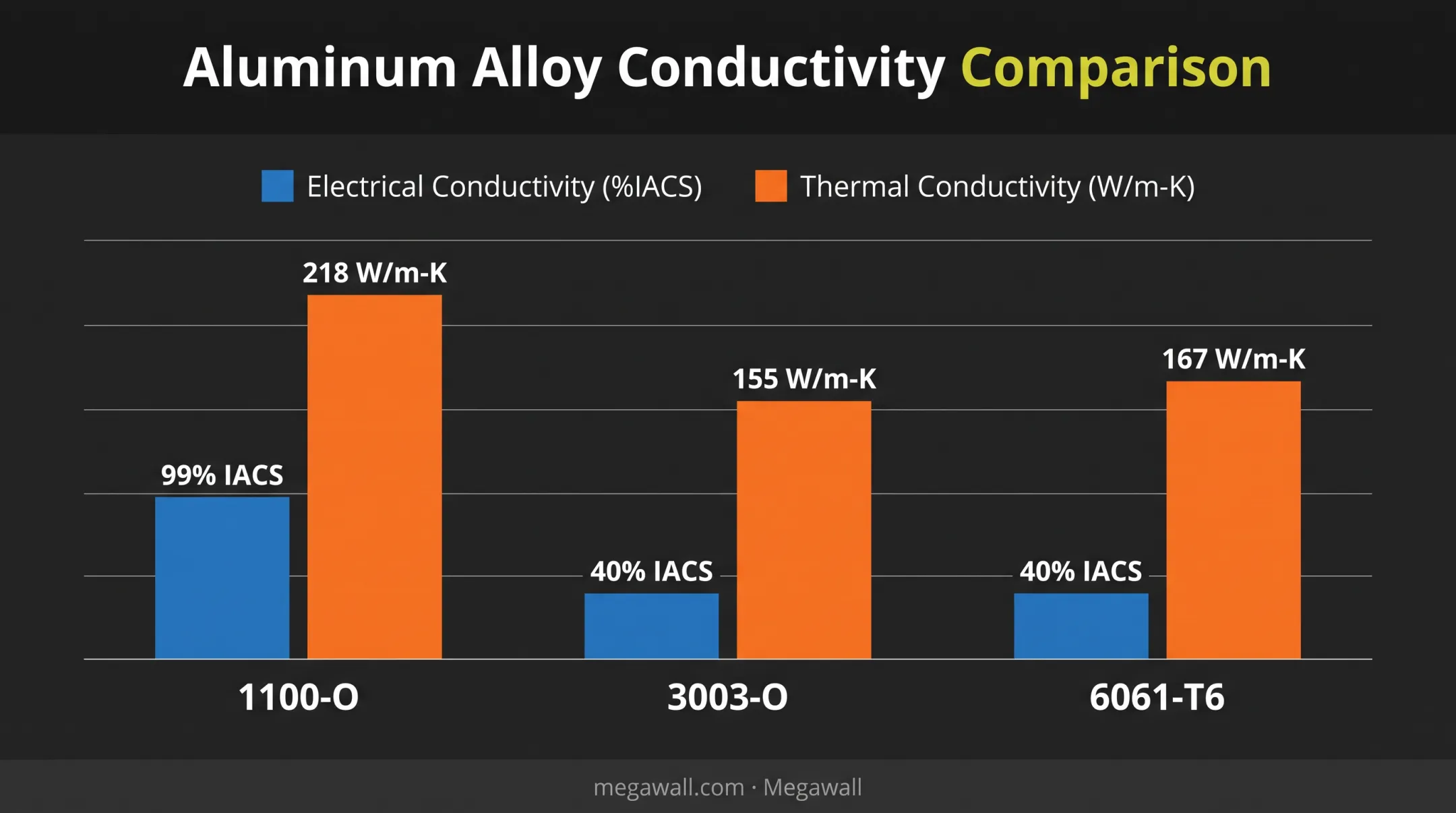

Electrical and Thermal Conductivity
Conductivity is where mill finish stands out. Because no coating sits between the metal and whatever it's contacting, mill finish aluminum offers superior electrical conductivity compared to anodized or painted alternatives.
Kaiser Aluminum's technical benchmarks show conductivity varies by alloy:
| Alloy/Temper | Electrical Conductivity | Thermal Conductivity |
|---|---|---|
| 1100-O | 59% IACS | 222 W/m-K |
| 3003-O | 50% IACS | 193 W/m-K |
| 6061-T6 | 43% IACS | 167 W/m-K |
Thermal conductivity follows the same alloy-dependent pattern, though values run lower than alloys engineered specifically for heat dissipation. For applications where an anodic oxide layer would interfere with current flow, mill finish stays the practical choice.
Formability and Workability
Because the surface is untouched, mill finish aluminum bends, cuts, welds, and processes without the complications an added coating can introduce. Fabricators can shape it, drill it, or weld it without worrying about damaging a finish layer first. This is a major reason mill finish often serves as the starting point for parts that get anodized or painted afterward.

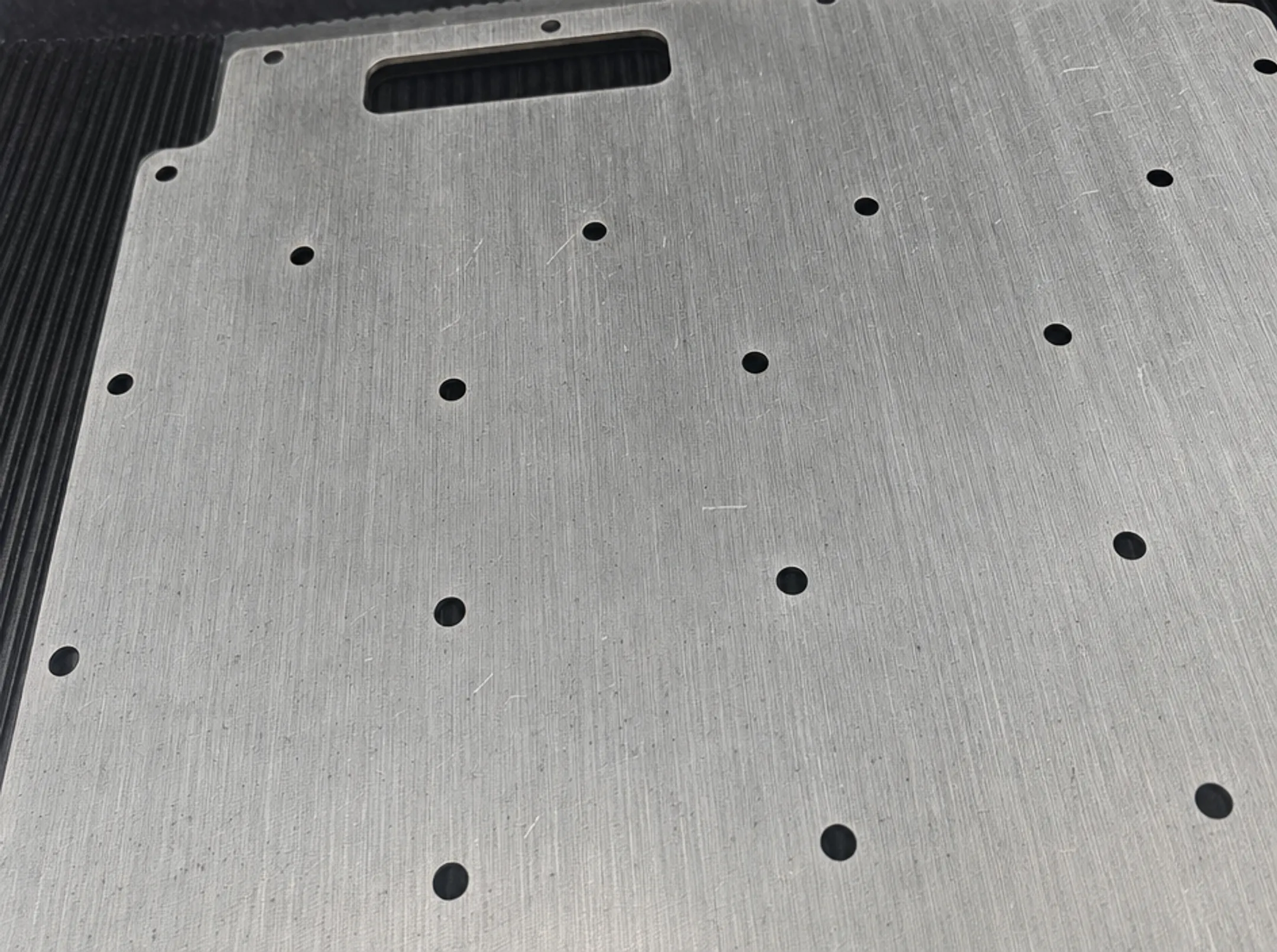

Appearance and Surface Characteristics
Visually, mill finish is a dull, matte gray. Expect visible die lines, tooling marks, and occasional light scratches from handling. That's the trade-off: you save money and gain workability, but you lose aesthetic refinement and long-term surface durability.
For components nobody sees, that trade works fine. For a customer-facing display panel, it usually doesn't.

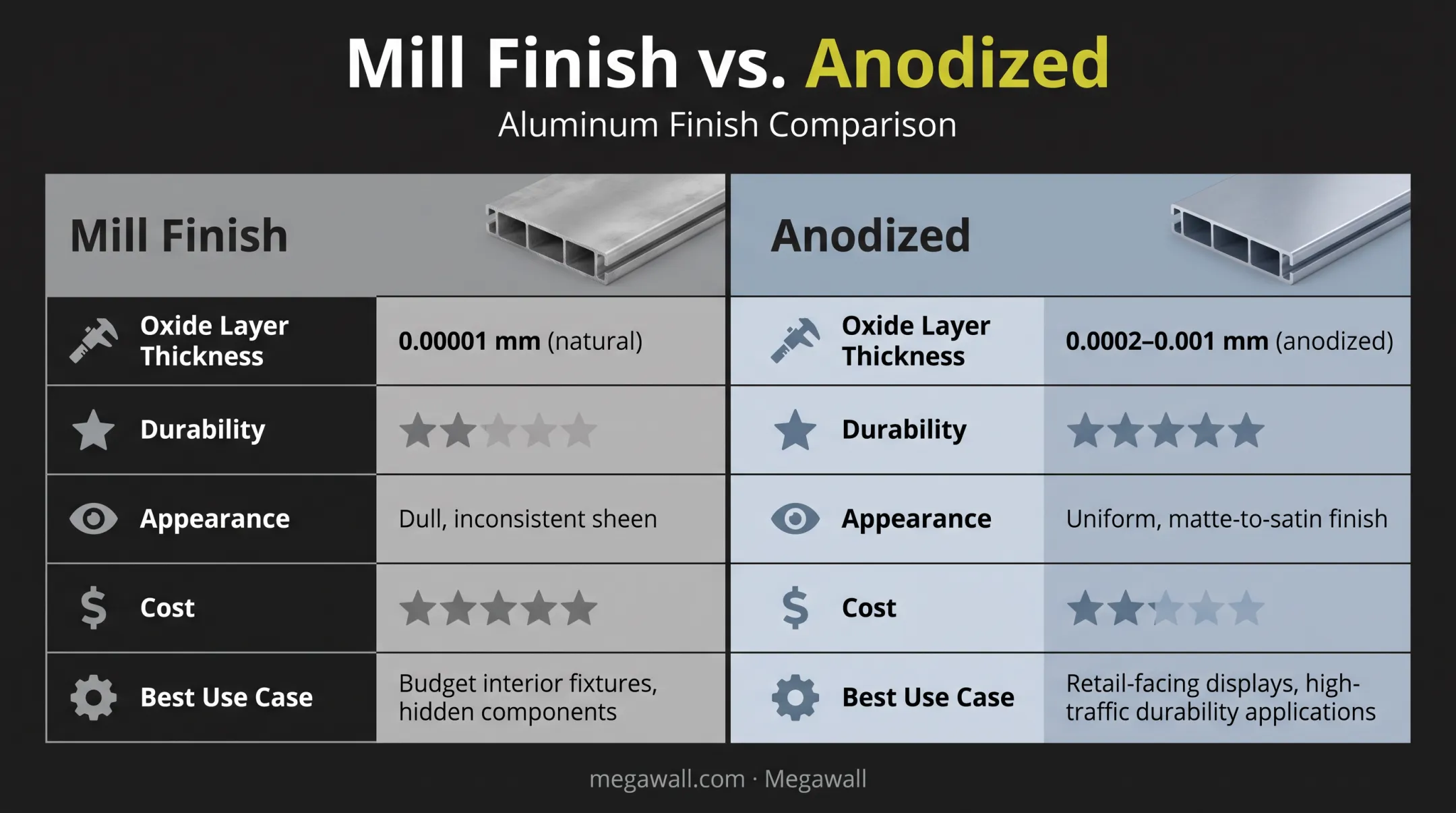

Mill Finish Aluminum vs. Anodized Aluminum
When specifying aluminum, mill finish vs. anodized is the choice most buyers weigh. Here's how they compare.
| Factor | Mill Finish | Anodized |
|---|---|---|
| Oxide layer | Natural 2–3 nm film | Class II 10–18 µm; Class I 18 µm+ (AAC) |
| Durability | Limited abrasion and corrosion resistance | Hard electrolytic layer; far better wear and corrosion resistance |
| Appearance | Dull; batch-to-batch variation | Uniform, controlled surface; optional dye colors |
| Cost | Lowest (no extra process step) | Higher (specialized equipment and chemical treatment) |
| Best for | Hidden components, industrial equipment, budget projects | High-traffic areas, cosmetic surfaces, corrosion-prone retail or architectural settings |
For retail display and merchandising systems, finish choice affects how long a fixture holds up under daily handling and how it looks on the sales floor. A scuffed, oxidizing panel doesn't do a retailer any favors.
Mill Finish Aluminum vs. Other Aluminum Finishes
Mill finish sits at one end of a spectrum. Other common finishes sit further along it:
- Brushed aluminum adds a directional grain through mechanical abrasion for a satin, non-reflective look. Light scratches hide better than on mill finish because they blend into the grain.
- Painted or powder-coated aluminum adds color and weather protection, but needs surface prep first. Mill finish won't hold paint evenly without sanding, priming, or etching because the raw oxide layer hurts adhesion.
- Polished aluminum delivers a mirror-like finish for decorative use. Reflectivity can reach 86–95% on polished mirror products, a sharp contrast to mill finish's raw industrial look.
Each step up the spectrum adds cost and processing time, along with more control over appearance and durability.
Choosing the Right Finish for Retail and Display Applications

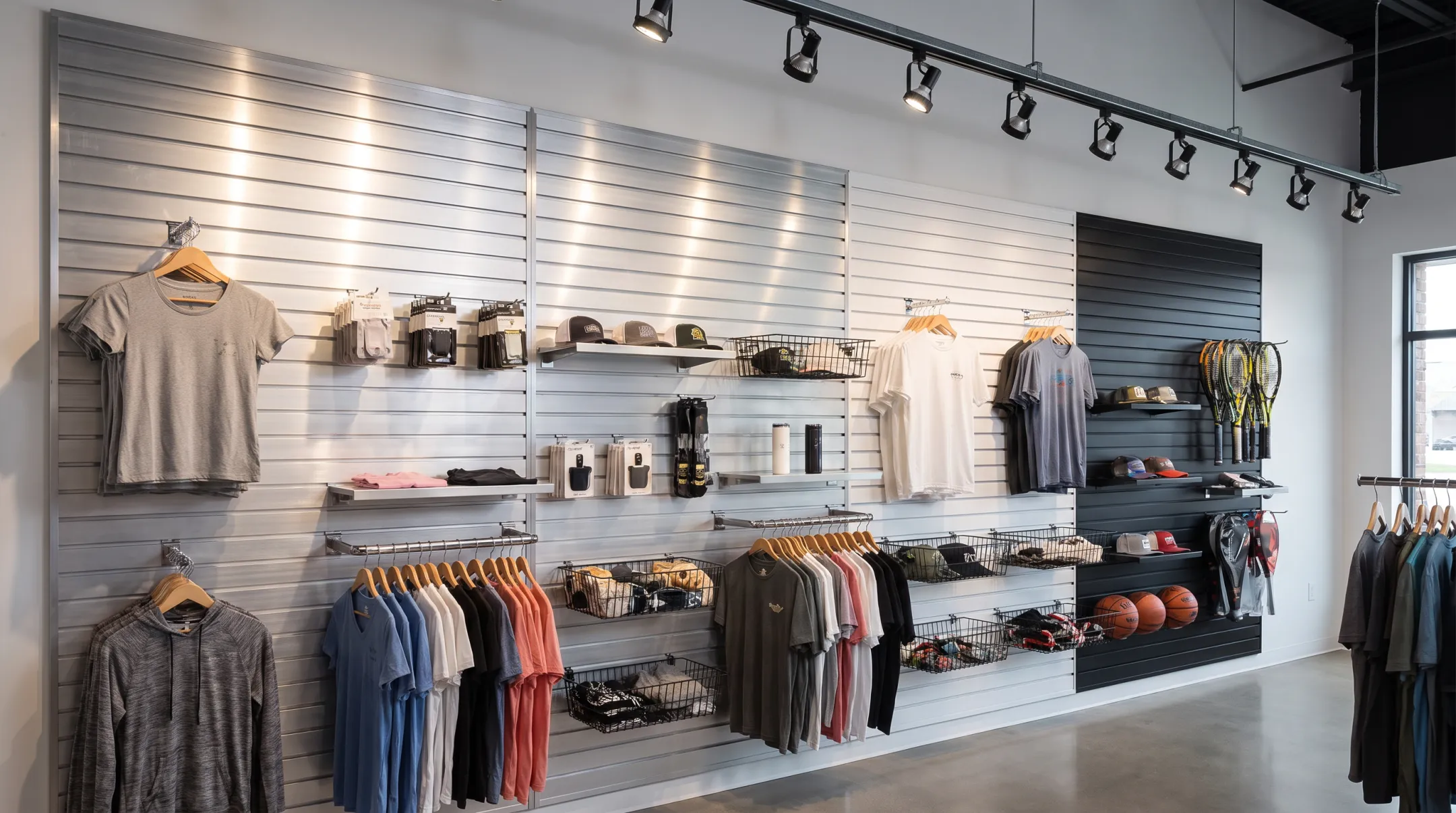

For retail fixtures, the right finish depends on visibility, foot traffic, and how long the piece needs to perform. A backroom bracket and a customer-facing display panel don't have the same requirements, and they shouldn't be specified the same way. Megawall's aluminum slatwall systems cover that spread. The same platform is available in Raw Mill, Clear Anodize, White, and Black, built with over 50% recycled content and LEED-certified. Anodized finishes add a durable, corrosion-resistant surface for high-visibility retail floors. Raw Mill keeps the natural industrial look when budget or design intent calls for an unfinished appearance. Practical guidance for specifying aluminum finishes:
- Concealed structural parts: Mill finish is usually enough—surfaces stay out of sight and corrosion exposure is limited.
- Visible display surfaces: Choose anodized or powder-coated finishes for longevity and a consistent look.
- High-traffic retail floors: Prefer anodized aluminum; it resists abrasion better than raw mill finish. Megawall's slatwall systems support loads exceeding 50 pounds per linear foot regardless of finish, so the choice is about appearance and environment, not structural capacity.
Conclusion
Mill finish aluminum is the raw, cost-effective baseline. It offers workability and electrical conductivity advantages, but lags anodized, painted, or brushed options in corrosion resistance and appearance.
Match the finish to the job: weigh budget, visibility, and environmental exposure together instead of defaulting to the lowest upfront cost.
Frequently Asked Questions
What is mill finish aluminum?
Mill finish aluminum is raw, untreated aluminum straight from the mill, with no coating, polish, or anodizing applied. It retains the natural surface texture from rolling or extrusion.
Can you paint mill finish aluminum?
Yes, but it needs proper surface prep first, such as sanding, priming, or etching, for even paint adhesion. Skipping prep often leads to uneven coverage or premature peeling.
What is the difference between mill finish and anodized aluminum?
Mill finish is an unprotected raw surface relying only on a natural, nanometer-thin oxide layer. Anodized aluminum has a thick, electrolytically grown oxide coating that adds protection and can be dyed for color.
What does clear anodized finish mean?
Clear anodized is anodizing applied without dye, leaving a clear, satin-silver protective coating. You still get anodizing’s durability without changing the metal’s natural color.
What color is mill finish aluminum?
Mill finish aluminum is dull gray, with slight lighter or darker shifts depending on the alloy and manufacturing conditions.
What is the best type of finish for aluminum?
It depends entirely on the application. Mill finish suits economy-driven or hidden parts, while anodized finishes work better where durability and appearance both matter.
