This guide breaks down what black anodized aluminum actually is, how manufacturers create it, how durable it really is, and where it shows up most often. Whether you're specifying materials for a building facade or sourcing components for a retail display, understanding these fundamentals helps you choose the right finish the first time.
Key Takeaways
- Black anodized aluminum is an electrochemically formed oxide layer, not a paint or coating
- The finish is harder and more corrosion-resistant than raw or painted aluminum
- Alloy choice matters: 6xxx series alloys anodize most predictably to black
- Fading risk depends on dye type — organic dyes fade in UV, inorganic/electrolytic dyes don't
- Scratches can't be "touched up" like paint; the bare metal underneath needs re-anodizing
What Is Black Anodized Aluminum?
Anodizing is an electrochemical process, not a coating you spray or dip. The aluminum part becomes the anode in an acid-electrolyte bath, and a controlled electric current drives oxygen to combine with the aluminum surface. This forms a porous, ordered oxide layer that's part of the metal itself, not a film sitting on top of it.
That structural difference matters. Because the oxide layer originates from the aluminum substrate, it's integrated with the metal rather than applied as paint or plating, so it won't chip or peel the way a coating can. Once formed, that porous layer gets dyed black and sealed to lock the color in place.
How is this different from black oxide?
Black oxide is a completely separate process, used mainly on steel and stainless steel. It's a chemical conversion process that creates a thin layer of iron-oxide magnetite, typically sealed with oil for lubricity in things like gears and locks. Anodizing, by contrast, only works on aluminum and produces a much thicker, harder, dyeable oxide layer.
Which alloys anodize best to black?
Alloy choice shapes the final color and finish quality:
- 6xxx series (like 6063, 6061) alloys have excellent anodizing response and are common in extrusions
- 7xxx series can anodize gray, blue-gray, or even brown-black depending on process controls
- High-silicon alloys anodize poorly: silicon doesn't dissolve well, leaving uneven gray or black powder residue
- Copper-rich 2xxx alloys are harder to control and produce a softer, less corrosion-resistant oxide
Because appearance varies alloy to alloy, always request an approved color sample using your actual alloy, temper, and finishing process before committing to a large order.

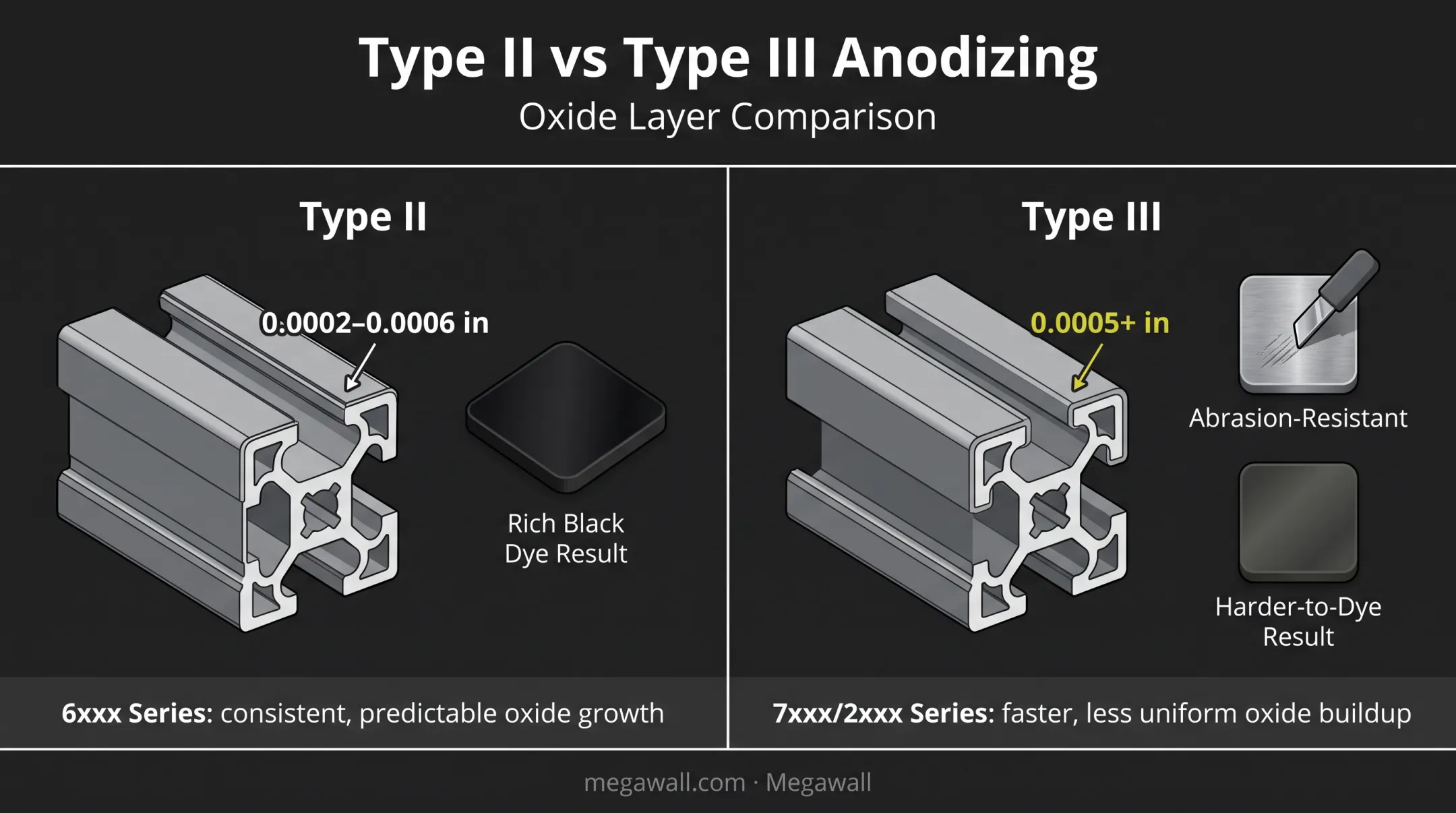

Type II vs. Type III Black Anodizing
Type II is the standard, conventional process. It produces a thinner oxide layer (roughly 0.0002 to 0.0006 inches) that absorbs dye easily and gives a rich, consistent black.
Type III, also called hardcoat anodizing, builds a much thicker and denser layer (0.0005 inches and up). It is harder and more abrasion-resistant, but tougher to dye to a true, deep black.
Alloy response differs under hardcoat. Many 6xxx alloys turn deep gray-black under Type III, while 7xxx and 2xxx alloys often shift toward bronze-gray instead.

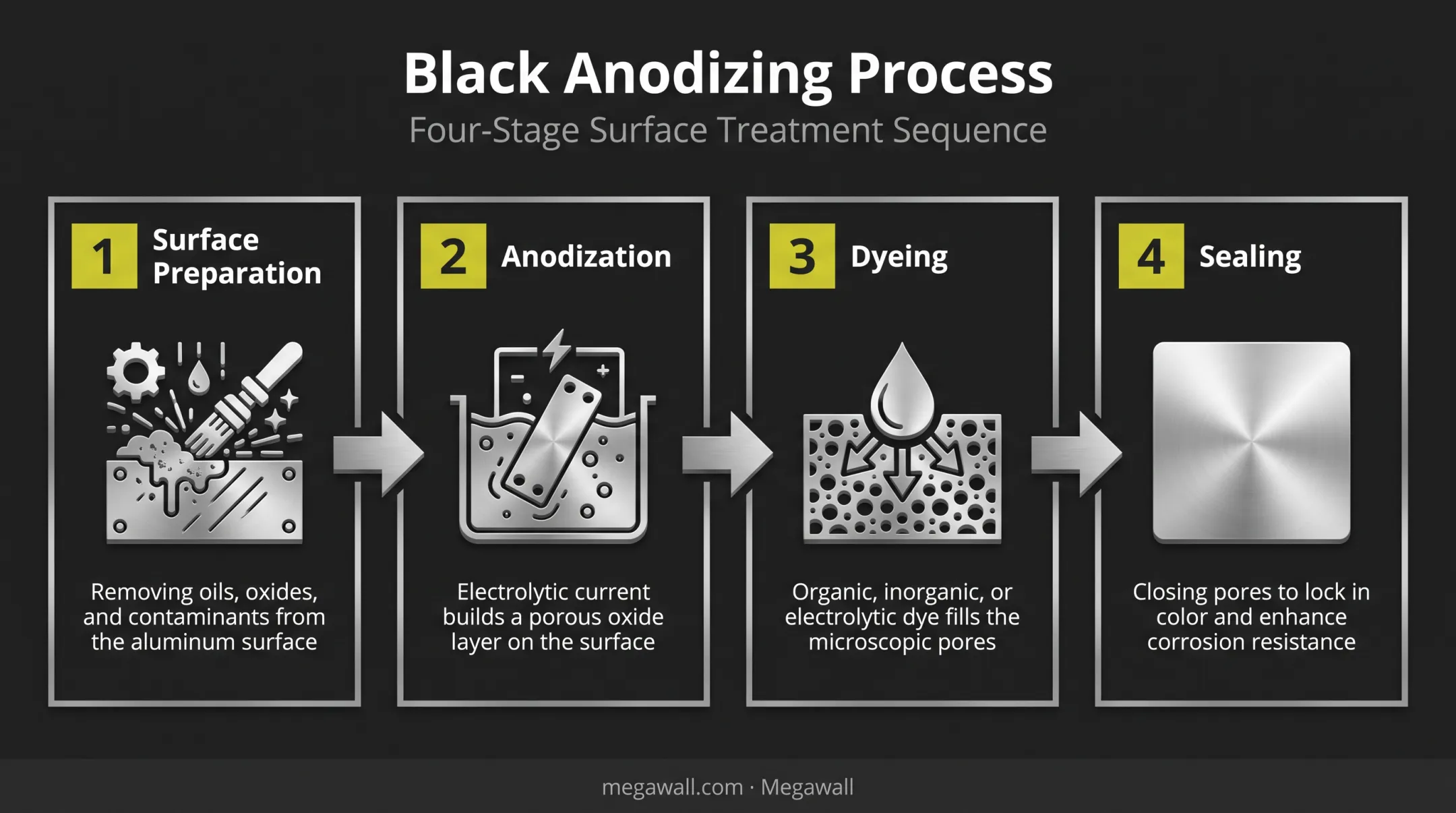

How Is Aluminum Anodized Black? (The Process)
Getting from raw aluminum to a finished black part takes four distinct stages.
Surface Preparation
Parts go through alkaline cleaning to strip oils and contaminants. Caustic etching then removes a thin surface layer and creates a uniform matte texture. An acidic desmutting step clears leftover alloy residue so dye adheres evenly later.
Anodization
The cleaned part goes into a sulfuric-acid electrolyte bath (commonly around 15% concentration) as the anode. Electric current drives oxygen ions to the aluminum surface, forming Al2O3 — the porous oxide layer that will hold the color.
Dyeing
This is where black actually happens. Three main routes are used:
- Organic dyes — most common and cost-effective, but vulnerable to UV fading
- Inorganic pigments — better lightfastness for demanding environments
- Electrolytic (metal salt) coloring — deposits metals like tin or nickel into the pores for earth tones through black, with strong outdoor performance
Sealing
The pores get closed, typically through hydrothermal sealing or metal-salt precipitation. This locks in the dye and closes the porous structure. An unsealed anodized part is far more vulnerable to staining and corrosion.
For reference, MIL-PRF-8625F (the governing military specification) lists typical anodic film thickness from roughly 0.00007 to 0.0010 inches for standard Type II coatings. Type III hardcoat can run up to 0.0045 inches.
Is Black Anodized Aluminum Durable, and Does It Fade?
Short answer: yes, it's durable, but fading depends entirely on how it was dyed.
The anodic oxide layer is hard. Industry sources describe anodized aluminum as harder and more abrasion-resistant than paint, with exterior anodic coatings largely unaffected by UV exposure and resistant to chipping or peeling.
Some technical sources claim hardcoat anodizing can approach four times the hardness of untreated aluminum, though exact numbers vary by test method and alloy.

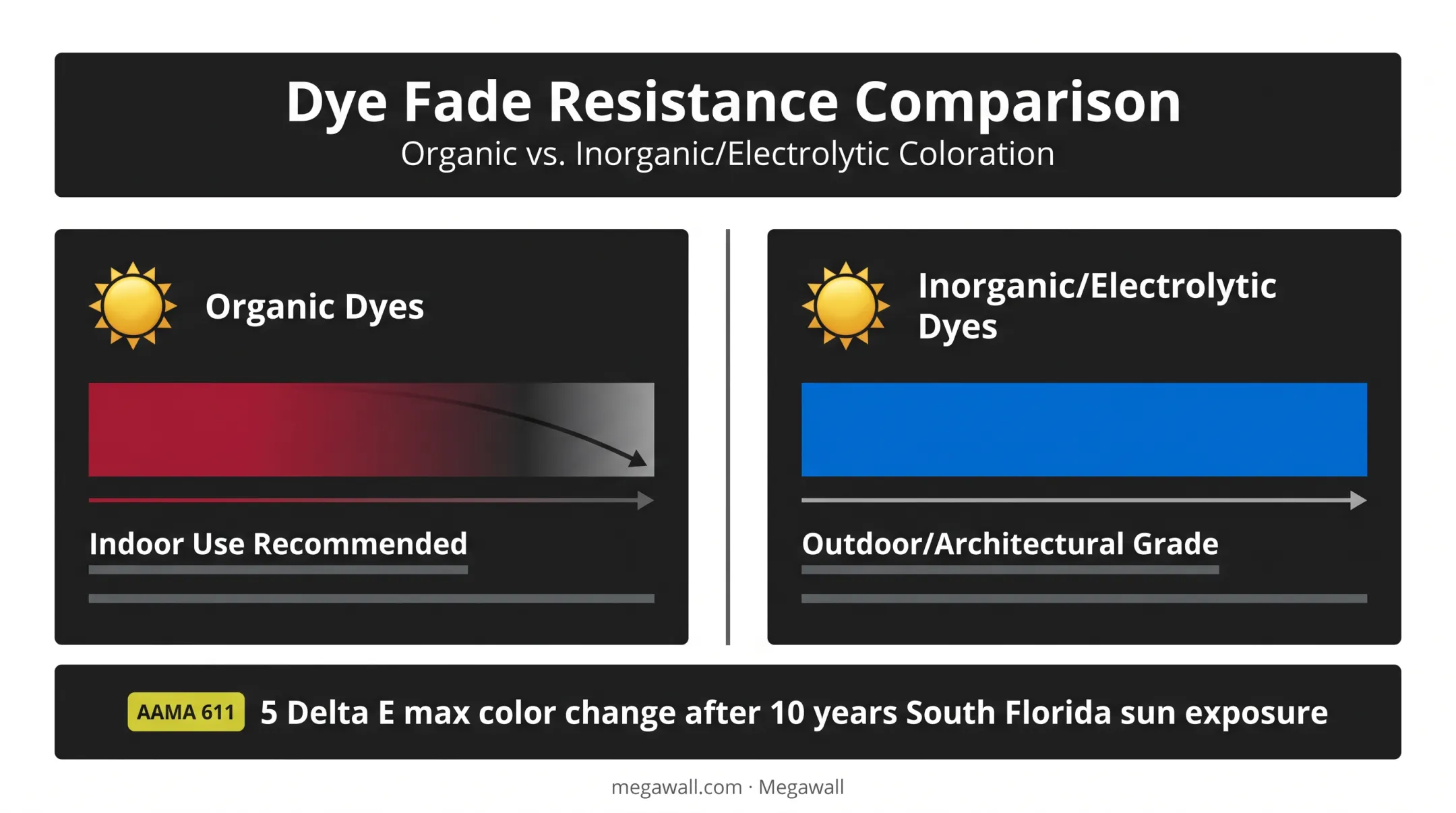

Fading comes down to dye chemistry:
- Organic dyes — affordable and rich in color, but not UV-resistant; Anodizing.org notes they're better for indoor use
- Inorganic and electrolytic (metal salt) dyes — far better outdoors; for long-term lightfastness, choose Architectural grade (8+ on standard scales)
For a real benchmark, the AAMA 611 architectural specification requires Class I anodized finishes to retain color within 5 Delta E after 10 years of South Florida sun exposure — one of the harshest UV test environments in the country.
You can't touch up a scratch. Color lives inside the oxide structure, so a scratch exposes bare aluminum underneath. There's no dabbing on matching paint—restoring uniform color usually means stripping and re-anodizing the entire part.
Can Anodized Aluminum Be Other Colors, or Is Black Unique?
Anodizing isn't limited to black. The same dyeing methods (organic, inorganic, and electrolytic) can produce clear/silver, bronze, champagne, red, blue, green, gold, and more. Black is popular, but it's one option among many.
That said, black does offer a couple of functional perks. It absorbs light, which helps on optical components or housings where glare matters. It also creates aesthetic contrast that pairs well with brushed or matte substrates for a premium look.
One myth worth clearing up: anodize color has essentially no effect on how a part radiates heat.
A 2020 study on aluminum heat sinks found that anodizing itself (not the black color specifically) boosted thermal emissivity from 0.14 up to 0.92, cutting thermal resistance by as much as 15%. Clear and black anodized surfaces perform almost identically in this regard.
As for matte versus glossy black, that's determined by pre-treatment, not the anodizing step. Etching before anodizing produces a matte surface, while polishing beforehand yields a glossier result.
Applications and Where Megawall Uses Durable Aluminum Finishes
Black anodized aluminum's combination of hardness, corrosion resistance, and low-maintenance appearance makes it a go-to across several industries:
- Architectural trim and facades — long-term weathering resistance for exterior building elements
- Electronics enclosures — scratch-resistant housings that also help with heat dissipation
- Automotive components — wheels, trim, and interior parts exposed to daily wear

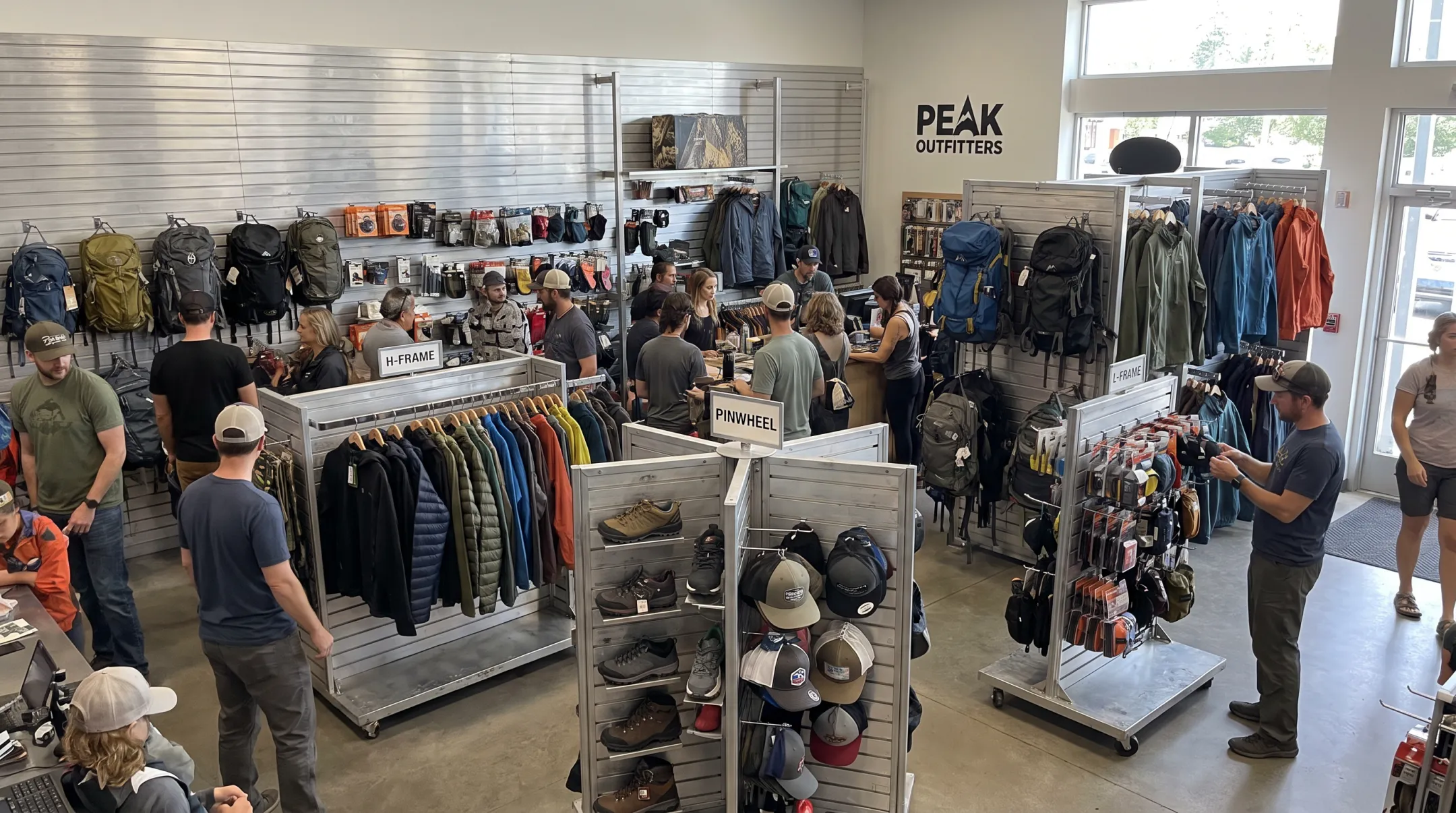

- Retail and commercial fixtures — surfaces that get handled constantly and still need to look sharp That last category is where Megawall's own aluminum systems live. Retail display fixtures take a beating: customers touch them, employees restock them, and carts bump into them daily. A durable metal finish isn't a luxury there; it's what keeps replacement costs down over years of heavy use. Megawall's aluminum slatwall and display systems, including the H-Frame, L-Frame, and Pinwheel fixture lines, are built from aluminum with over 50% recycled content and are LEED-certified. That mirrors the durability and sustainability priorities behind quality anodized finishes. Those systems are built for retail abuse:
- Support over 50 pounds per linear foot
- Hold up to daily handling in busy stores
- Clean easily without special maintenance routines For retailers comparing display fixture options, a finish that resists wear and corrosion means fewer replacement cycles and a wall that still looks sharp years after install.
Frequently Asked Questions
Can aluminum be anodized black?
Yes. 6xxx series alloys generally anodize most predictably to a deep, consistent black, while some 7xxx alloys can shift toward brown-black or gray depending on process control.
Can anodized aluminum be any color?
Anodizing supports a wide color range — clear, bronze, red, blue, gold, and more — through different dyeing and electrolytic coloring methods. Black remains one of the most popular choices for its look and functional benefits.
How durable is black anodized aluminum?
It's significantly harder and more abrasion-resistant than paint or powder coat, with architectural specifications requiring color retention for 10+ years under sun exposure. Exact lifespan varies by dye type, seal quality, and exposure conditions.
Does black anodized aluminum fade?
It depends on the dye. Organic dyes can fade under prolonged UV exposure, while inorganic and electrolytic (metal salt) dyes resist fading even outdoors.
Can you touch up black anodized aluminum?
Not like paint. A scratch exposes bare aluminum underneath the oxide layer, so restoring uniform color usually requires stripping and re-anodizing the entire piece.
Is anodized aluminum stronger than untreated aluminum?
The anodic oxide surface is much harder and more scratch- and corrosion-resistant than raw aluminum. The base metal's ductility underneath stays largely unchanged.
