Experienced DIYers and in-house retail teams can usually handle a standard installation. Larger commercial buildouts, though, often benefit from a licensed contractor or direct guidance from the panel manufacturer.
Get it wrong, and the consequences aren't cosmetic. Missed studs, wrong screws, or unlevel panels lead to sagging displays, damaged merchandise, and warranties that no longer apply. This guide walks through the full process, from planning to final checks.
TL;DR
- Slatwall installation is a moderate DIY project—gather a stud finder, level, drill, and saw
- Secure panels directly into wall studs for maximum weight capacity
- Cut around outlets, stagger seams, and add edge trim for a professional finish
- Metal slatwall systems like Megawall’s steel and aluminum panels hold 50+ lbs per linear foot and outlast standard MDF
Installation Guide for Slat Wall Panels

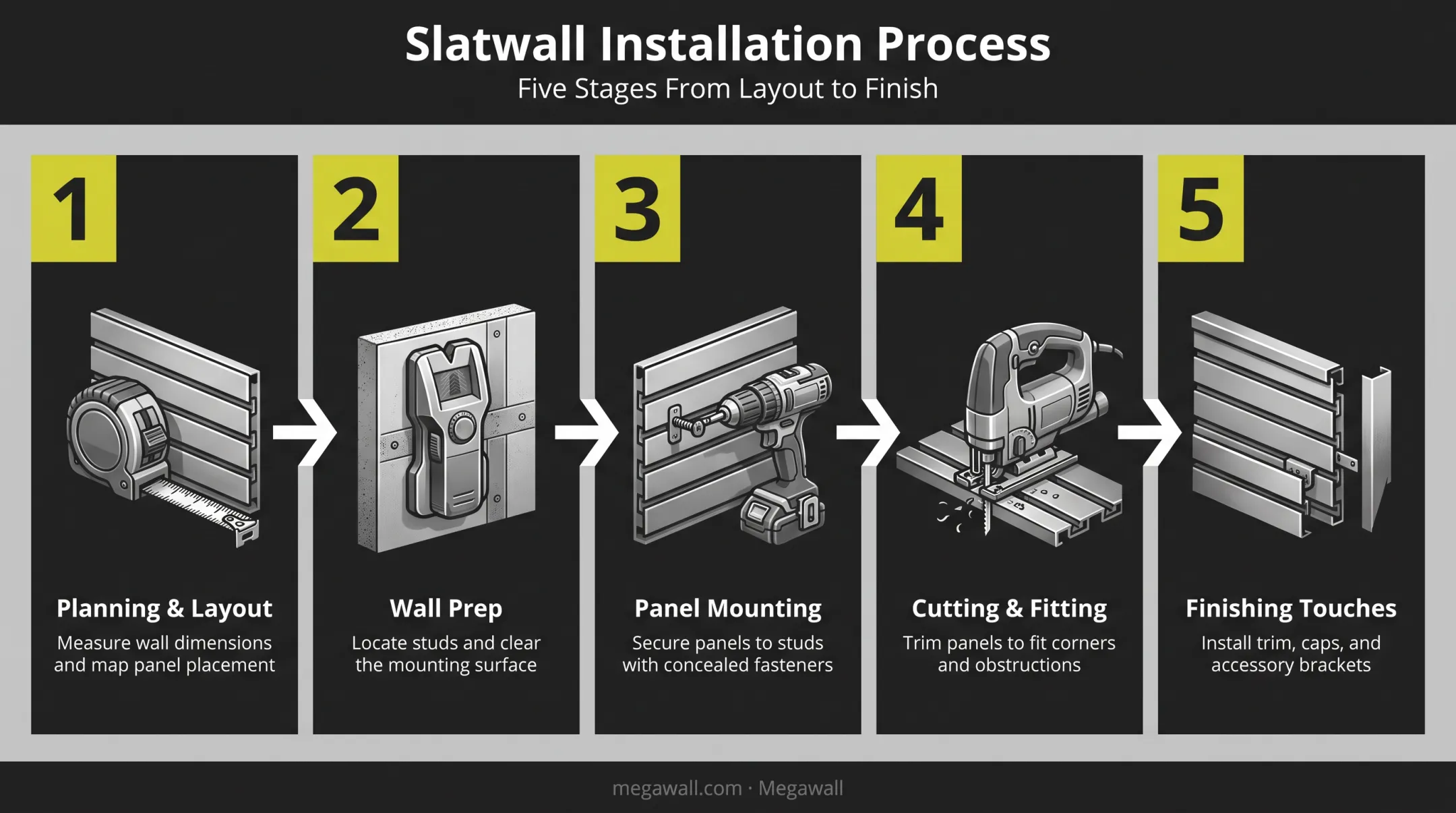

The process breaks down into five stages: planning and layout, wall prep, panel mounting, cutting and fitting around obstacles, and finishing touches.
Timeline varies. A single wall section might take a few hours or a full day, depending on panel material (MDF, PVC, steel, or aluminum) and how many outlets or fixtures you need to work around.
Prerequisites and Safety Considerations
Before you touch a drill, confirm the wall is clean, dry, and structurally sound. Studs need to be locatable and accessible.

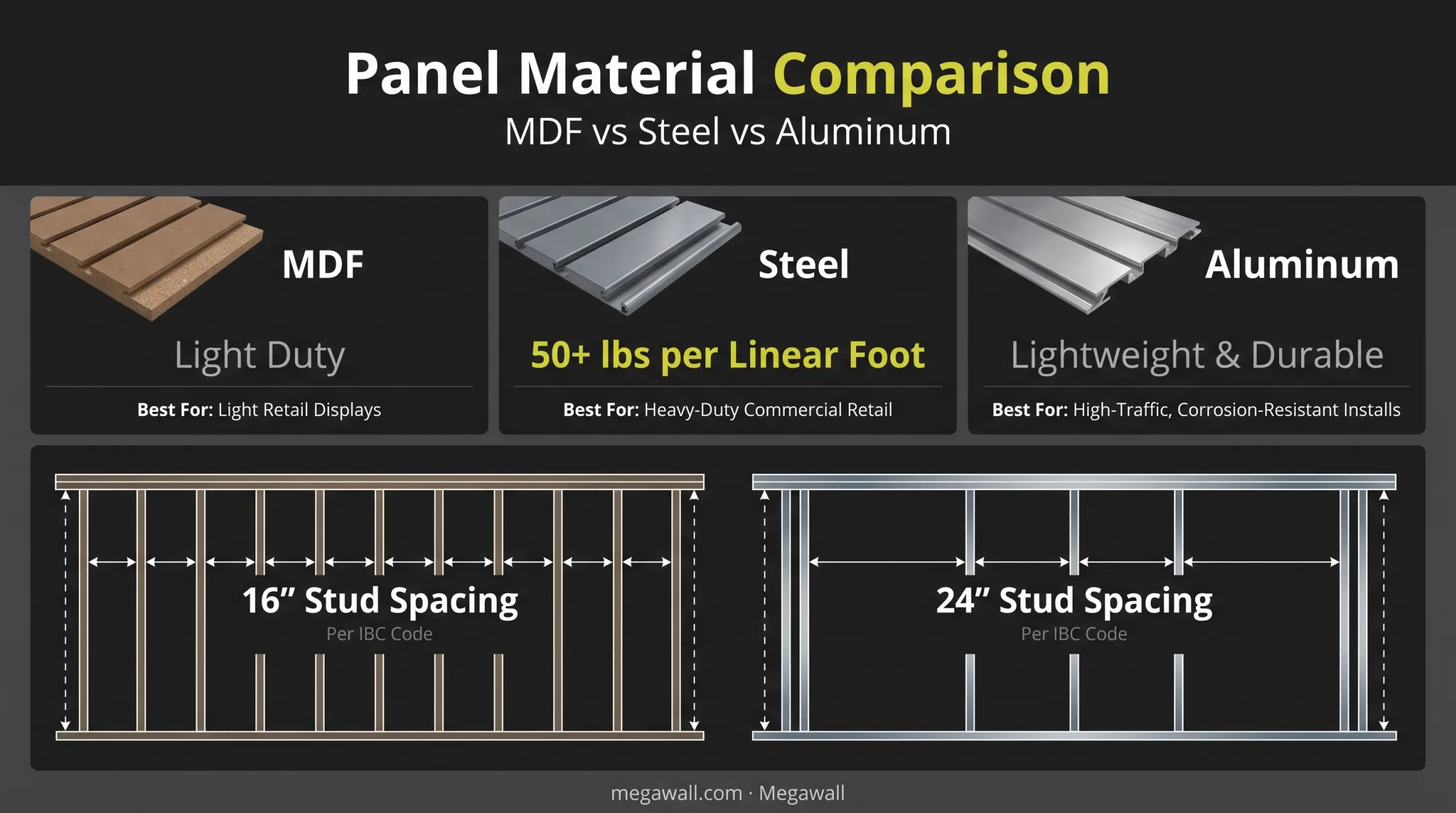

Match panel material to the intended load:
- MDF panels work fine for light retail displays
- Steel slatwall systems, like Megawall's, hold over 50 lbs per linear foot and suit heavier merchandising
- Aluminum systems offer a lighter-weight alternative with comparable durability for many retail uses
Stud spacing requirements vary by wall type and local code. The 2024 International Building Code ties wood-stud spacing to stud size, height, and whether the wall is load-bearing, so don't assume a blanket 16" or 24" rule (ICC 2024 IBC).
Always check your as-built wall and local code before you lay out fasteners.
Safety non-negotiables:
- Turn off power at the breaker before removing any outlet covers
- Wear safety glasses and a dust mask when cutting panels
- Don't proceed if you can't locate studs or if the wall is out of square
- Verify local fire code requirements for wall coverings before installing
Tools and Materials Required
Essential tools:
- Tape measure and level
- Stud finder
- Drill or screw gun
- Circular saw or jigsaw
- Pencil
- Safety glasses and dust mask
Fasteners:
- Coarse-thread drywall screws for wood studs
- Self-tapping screws for metal stud framing
- Panel adhesive for added hold on load-bearing sections
Optional but useful:
- Edge and corner trim
- Wood filler
- Painter's tape and clamps
Concealed-fastener systems also change what shows on the finished wall. Megawall's patented design hides the screws entirely, so sections up to 8 feet read as one seamless surface with no hardware breaking up the face.
How to Install Slat Wall Panels (Step-by-Step)
Installation follows a defined sequence. Skip stud marking or leveling steps, and you'll deal with sagging or misalignment months down the road, usually right after the wall gets loaded with product.
Preparing the Site
- Measure wall dimensions and calculate panel quantity, adding 10% extra for cuts and mistakes.
- Mark stud locations across the entire wall with a stud finder.
- Note outlet, switch, and fixture locations so you can plan cutouts before panels go up.
Planning the Layout
Lock in the layout before the first fastener goes in:
- Choose vertical or horizontal panel orientation up front
- Sketch the full wall on paper, including seams and openings
- Stagger seams between rows for stronger joints and cleaner sight lines
Positioning and Securing the First Panel
The first panel is your control line. If it is off level or plumb, every panel after it will drift.
- Establish a level or plumb reference line with a long level.
- Set the first panel tight to that line and confirm fit at both ends.
- Fasten into studs every 12–16 inches so the panel can carry retail load without sag.
- Land both panel ends on a stud wherever possible for a solid edge hold.
Building Out the Wall
- Attach the next panel snug to the previous piece, grooves and edges aligned.
- Keep joints tight so gaps do not open once accessories and product go on.
- Recheck level after each panel. Do not assume the wall stays true because the first panel did.
- Work across the field in sequence until the run is complete.

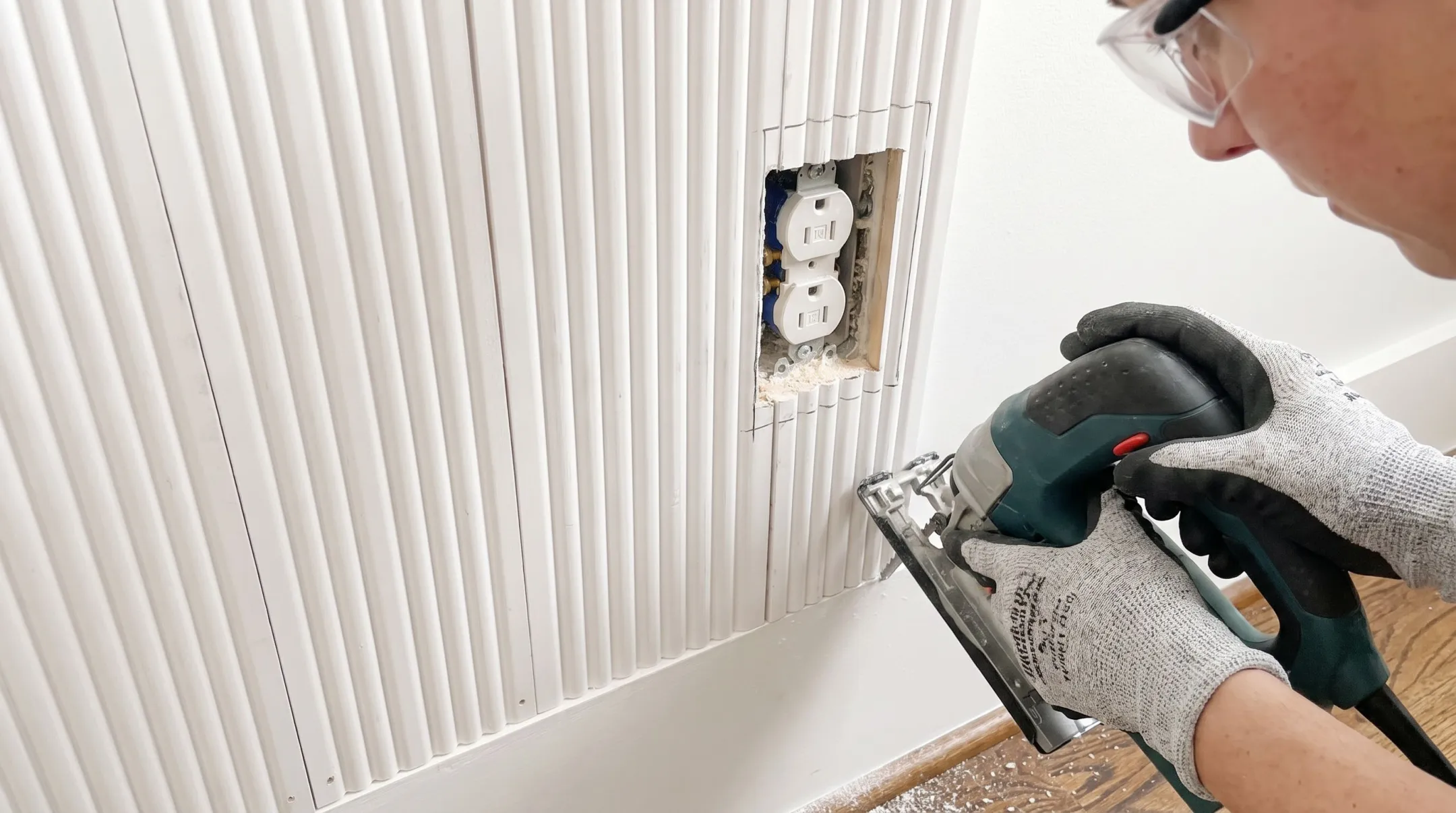

Cutting Around Outlets and Fixtures
- Measure the outlet or fixture location precisely from fixed edges.
- Transfer those dimensions to the back of the panel before cutting.
- Drill a starter hole in one corner for the jigsaw blade.
- Cut along your lines with a jigsaw, staying just inside the mark.
- Dry-fit the panel and trim as needed before final fastening.
- Install a box extender if the outlet sits recessed behind the finished panel surface.
Post-Installation Checks and Validation
Before loading the wall with any merchandise, confirm the installation is secure and true.
Visual and physical checks:
- Panels are level and plumb across the entire run
- No panel edges feel loose to the touch
- Grooves align cleanly from panel to panel
Functional test: Hang a hook or bracket in several groove locations and apply a realistic load. Confirm each point holds with no slip and no panel movement before you merchandise the full wall.
Watch for these warning signs of poor installation:
- Visible gaps between panel seams
- Panels that aren't fully seated against studs
- Any flexing under light hand pressure
Skipping this step is a common mistake. Problems often surface weeks later, when a fully loaded display starts pulling away from the wall.

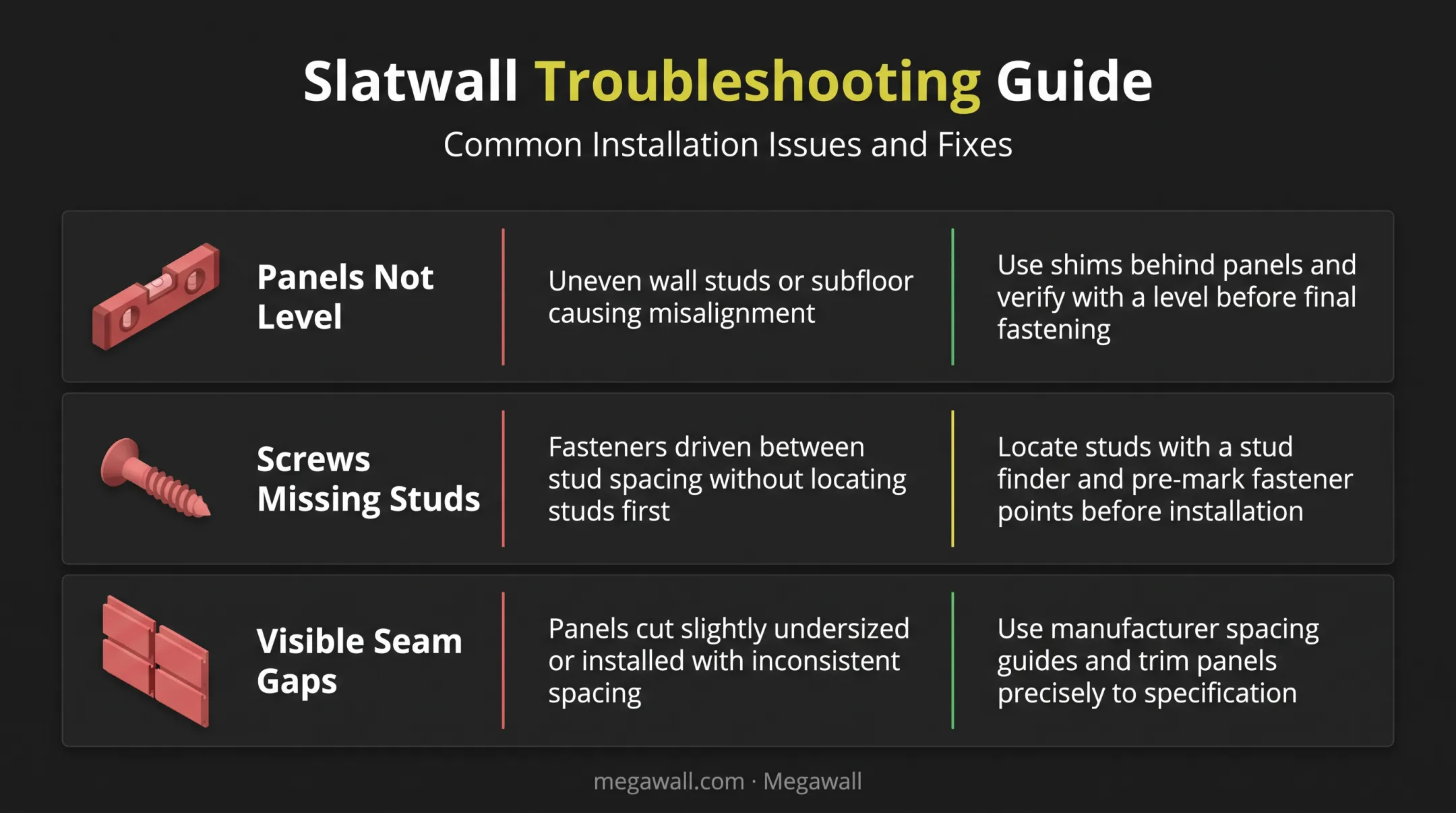

Common Installation Problems and Fixes
Most slatwall install issues show up after a few panels are up—and most are fixable without tearing the wall down. Use the checks below to correct alignment, fastening, and seam problems before you load the wall.
Panels Not Aligning Level Across the Wall
Problem: Later panels drift out of level as you work across the wall.
Likely cause: The first panel wasn't perfectly leveled, or stud spacing is inconsistent behind the drywall.
Fix: Re-check the first panel with a long level before adding more. Treat it as your master reference point for the entire run — every subsequent panel gets checked against it, not against the panel next to it.
Screws Missing the Stud
Problem: Panels feel loose or wobble near the edges.
Likely cause: Inaccurate stud marking, or stud spacing wider than expected.
Fix: Re-verify stud locations with a stud finder. Add a ledger board or an extra fastening point if studs land in awkward spots relative to panel edges.
Visible Gaps or Seams Between Panels
Problem: Shadow lines or gaps show up between panel joints.
Likely cause: Panels weren't pushed fully together before fastening, or the wall surface underneath is uneven.
Fix: Use clamps to hold panels tight while fastening. For minor gaps that already exist, color-matched filler, caulk, or trim can disguise the issue.
Pro Tips for Installing Slat Wall Panels Effectively
- Start with your most visible section. Install the high-traffic or most prominent wall area first. It sets the quality standard for the rest of the job.
- Consider concealed-fastener metal systems. Megawall's aluminum and steel panels create a seamless look across sections up to 8 feet, with no visible screws breaking up the display surface.
- Map it out for later. Document stud and bracket locations on a simple wall diagram. Future fixture rearranging goes much faster with this on hand.
- Bring in engineering support for big jobs. Large commercial buildouts benefit from manufacturer design and engineering input, which helps avoid costly layout mistakes before panels ever go up.
Conclusion
Proper installation decides how durable, safe, and load-ready your slat wall system will be. This is structural work that has to support real weight on the sales floor.
Take time with planning, locate studs precisely, and check every fastener before you hang displays. Confirm the wall holds as designed, then merchandise with confidence.
Frequently Asked Questions
How much does it cost to install a slat wall?
Cost varies based on panel material (MDF, PVC, steel, aluminum), wall size, and whether you DIY or hire a contractor. Get quotes based on your exact square footage and material choice.
How are slat walls installed?
Panels fasten into wall studs through the grooves, never through the face. Screws provide the primary hold, with adhesive sometimes added for extra reinforcement on load-bearing sections.
Are slat walls still trendy?
Yes. Slat walls remain popular for retail merchandising thanks to their versatility, clean lines, and ability to adapt to changing display needs.
Can slat wall panels be installed without hitting wall studs?
Adhesive can provide some support, but fastening into studs is strongly recommended for load-bearing stability. Skipping stud attachment risks sagging once merchandise weight gets added.
What is the difference between MDF and metal slatwall panels?
Metal systems, like steel and aluminum, generally offer higher weight capacity and durability compared to standard MDF. Steel slatwall from Megawall, for example, holds over 50 lbs per linear foot.
Do I need a professional to install slat wall panels?
Basic installations are DIY-friendly for anyone comfortable with a stud finder and level. Larger commercial projects, though, typically benefit from a licensed contractor or manufacturer support to avoid costly layout errors.
