Most homeowners can handle stud-based installations with common hand tools. But commercial or retail installations with strict weight requirements often benefit from manufacturer guidance or professional installation.
The stakes are real. Improper installation can cause bracket pull-out, sagging shelves, wall damage, or worse — falling heavy items. The CPSC recorded roughly 17,800 emergency-room-treated injuries annually from furniture and appliance tip-overs between 2020 and 2022, with 44% involving children under 18. While that stat covers tip-overs broadly, it underscores why secure mounting matters.
This guide walks through complete, correct installation — from prep to final load testing.
Key Takeaways
- Locate studs first; use rated anchors only when studs aren't available
- Pre-drill pilot holes sized to your fastener — skipping this splits wood and strips anchors
- Match fasteners to the wall: lag bolts for studs, toggles for hollow walls, masonry anchors for concrete or brick
- Level across all brackets before final tightening, not after
- For retail loads that need consistent heavy-duty capacity, use engineered systems like Megawall slatwall (50+ lbs per linear foot)
Installation Guide for Heavy Duty Shelf Brackets
The process breaks down into five stages: site preparation, placement and marking, mounting brackets, attaching the shelf, and validation. Skipping any stage is where problems start.
Expect a 1-3 hour project for a standard installation. You'll need basic hand tools, careful measurement, and a helper if you're hanging a long or heavy shelf. Rushing the marking and leveling stage is the single biggest cause of crooked or unstable shelves.
Prerequisites and Safety Considerations
Before drilling anything, confirm your wall material: drywall, plaster, tile, brick, or masonry. This determines every fastener decision that follows.
Check these items first:
- Wall type and thickness
- Stud locations (or anchor compatibility if studs aren't accessible)
- Bracket size relative to shelf length and thickness
- Fastener rating matched to intended load
Studs are typically spaced 16 or 24 inches apart, according to Family Handyman. If your bracket spacing doesn't align with stud spacing, you'll need rated anchors for at least some mounting points.
Non-negotiable safety rules:
- Never mount heavy duty brackets into drywall alone without rated, weight-bearing anchors
- Never exceed the manufacturer's stated weight capacity per linear foot
- Never assume a stud-mounted screw and an anchor-mounted screw perform equally — they don't

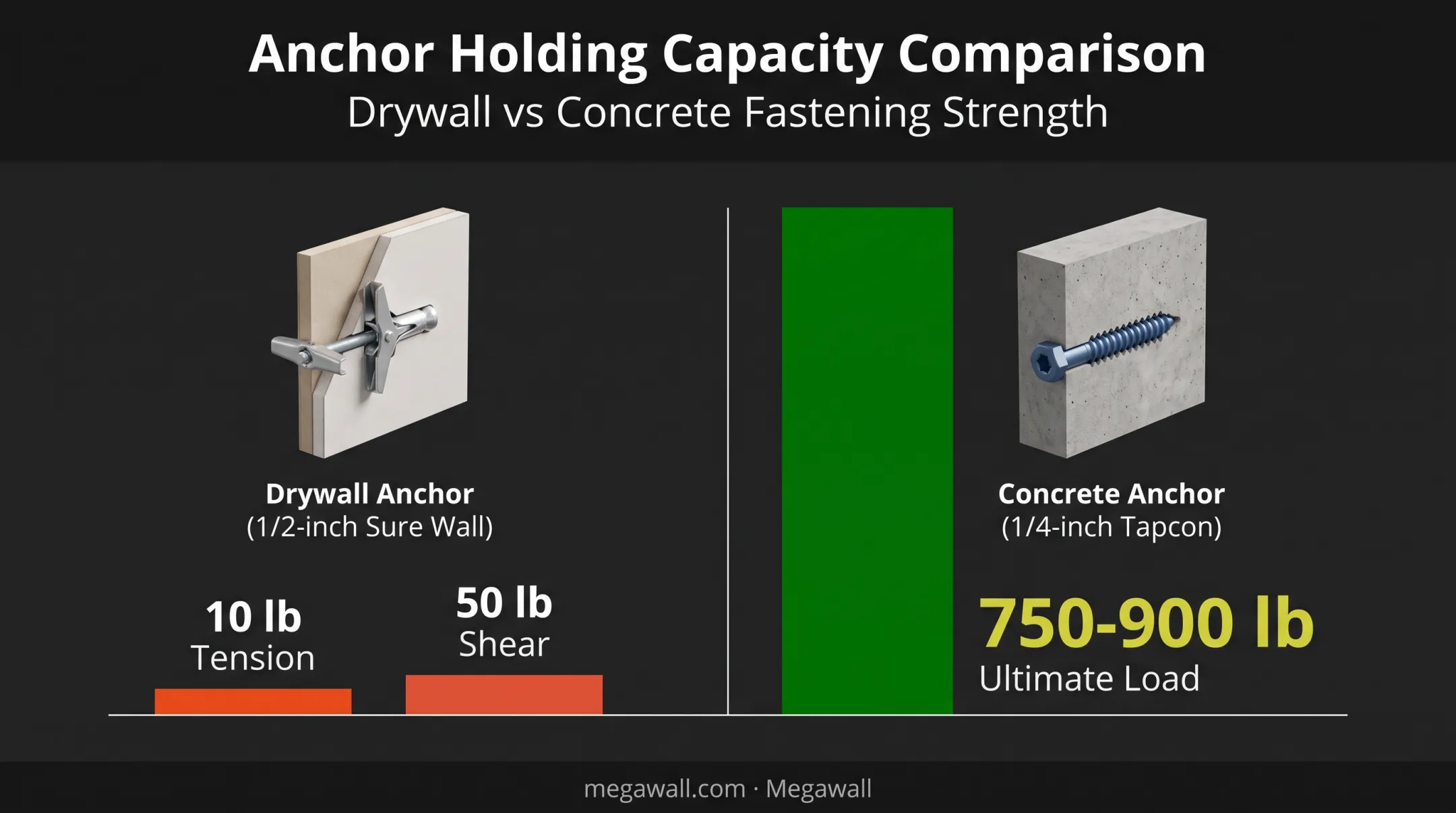

The performance gap between anchors and studs is significant. Simpson Strong-Tie's Sure Wall anchor data for 1/2-inch drywall lists allowable loads of just 10 lb tension and 50 lb shear per anchor, based on a 4.0 safety factor for a single anchor, not multiple closely spaced ones.
Concrete is a different story: a 1/4-inch Tapcon anchor with 1-inch embedment can handle ultimate values of 750-900 lb in standard concrete. Wall material is the biggest variable in the entire project.
Tools and Parts Required
Gather these before you start:
- Stud finder
- Drill with pilot bit set
- 4-foot level
- Tape measure
- Pencil
- Wrench or socket set
- Safety goggles

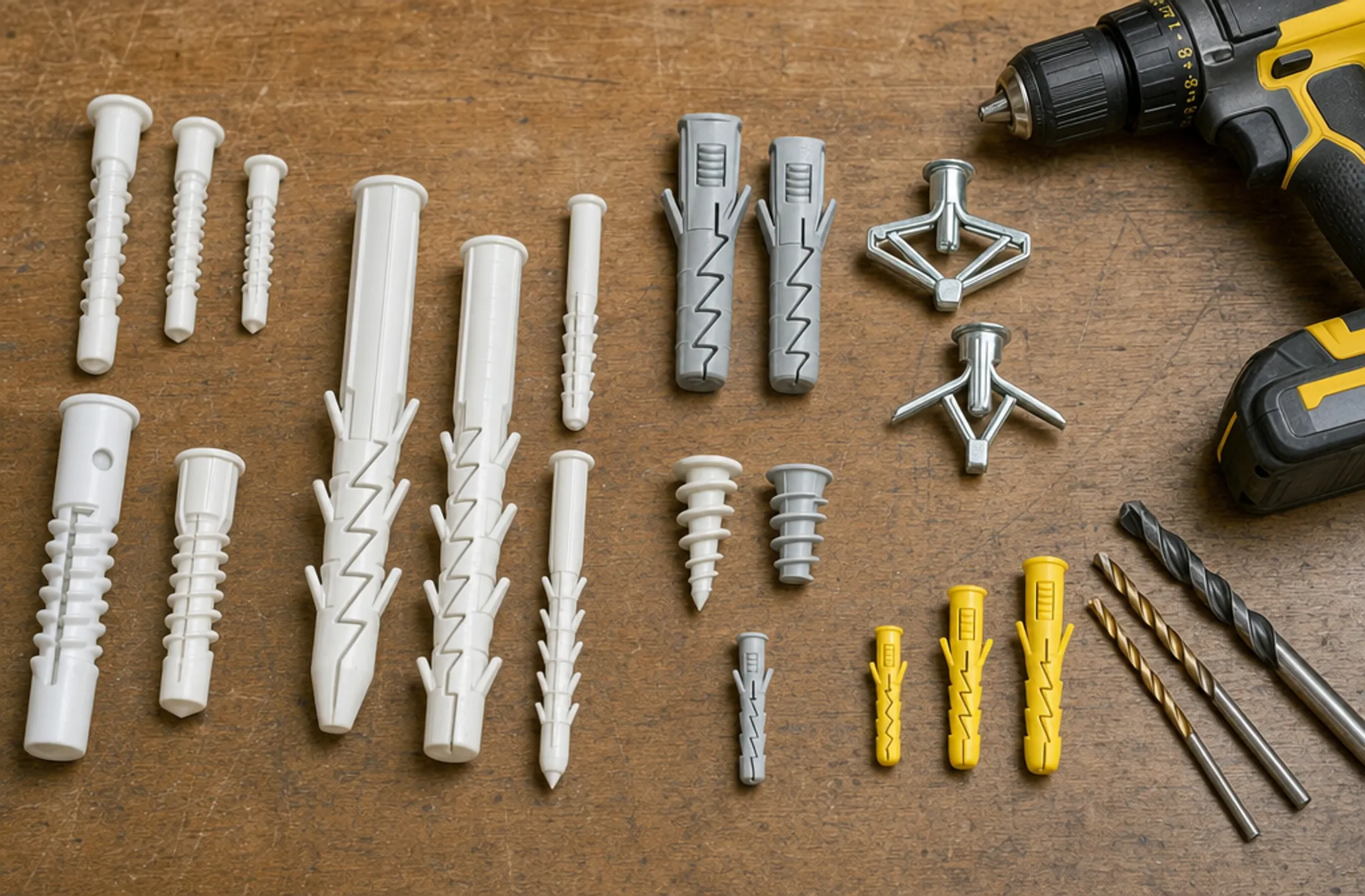

Fastener selection depends entirely on wall type:
| Wall Material | Fastener Type |
|---|---|
| Wood stud | Lag bolts |
| Hollow drywall (no stud) | Toggle or molly bolts |
| Brick/concrete/tile | Masonry anchors |
These aren't interchangeable. A lag bolt in hollow drywall does nothing useful without a stud behind it. Masonry work also requires a masonry drill bit and, for concrete or brick, often a hammer drill.

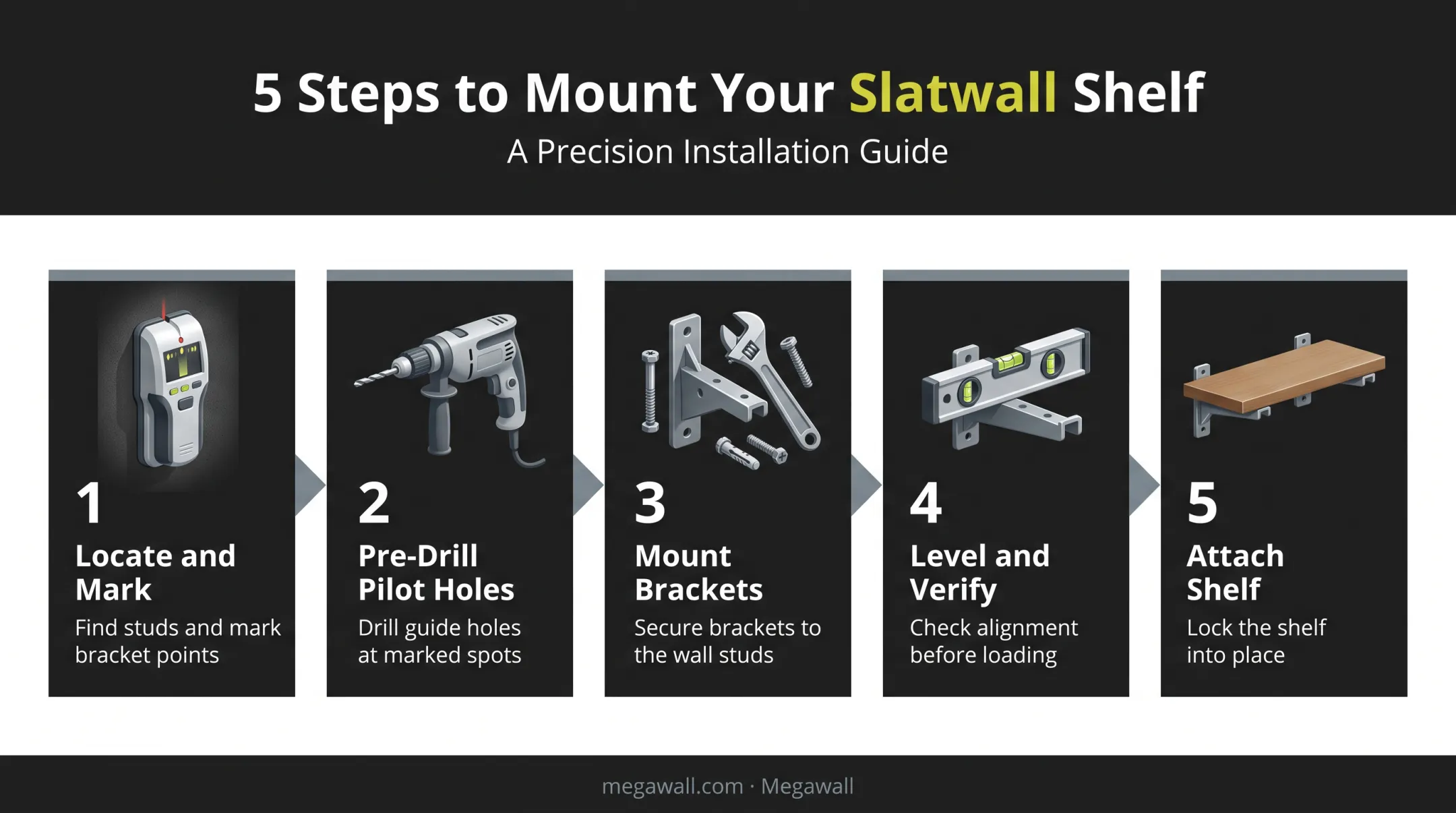

How to Install Heavy Duty Shelf Brackets (Step-by-Step)
Heavy duty brackets need a defined install sequence. Skipping pilot holes or guessing at stud locations is how shelves sag or brackets fail months later.
Locate and mark. Use a stud finder to identify studs across the intended shelf span. Mark a level line at your desired height, then confirm bracket spacing. Brackets should sit no more than a few inches from each shelf end.
Pre-drill pilot holes. Drill at each marked point using a bit sized to your fastener. Pilot holes help prevent cracked bolt heads and stripped anchors.
Mount the brackets. Secure using fasteners matched to your wall type. Tighten firmly, but do not over-torque the fasteners.
Level and verify. Run a level across all brackets before final tightening. Adjust as needed so every bracket sits at the same height.
Attach the shelf. Dry-fit first. Lip-style brackets simply rest the shelf in place; other styles require screwing through the bracket arm into the shelf underside.
For tile, brick, or concrete: Use a masonry bit sized to your anchor and check the anchor manufacturer's hole-depth specs. Locate studs first with a stud finder set to the appropriate mode so you know what sits behind the finish before you drill.
Post-Installation Checks and Validation
Once mounted, run through a quick visual and structural check:
- Brackets sit flush against the wall with no visible gap
- Shelf is level across its full length
- No wobble when you press down gently on each bracket point

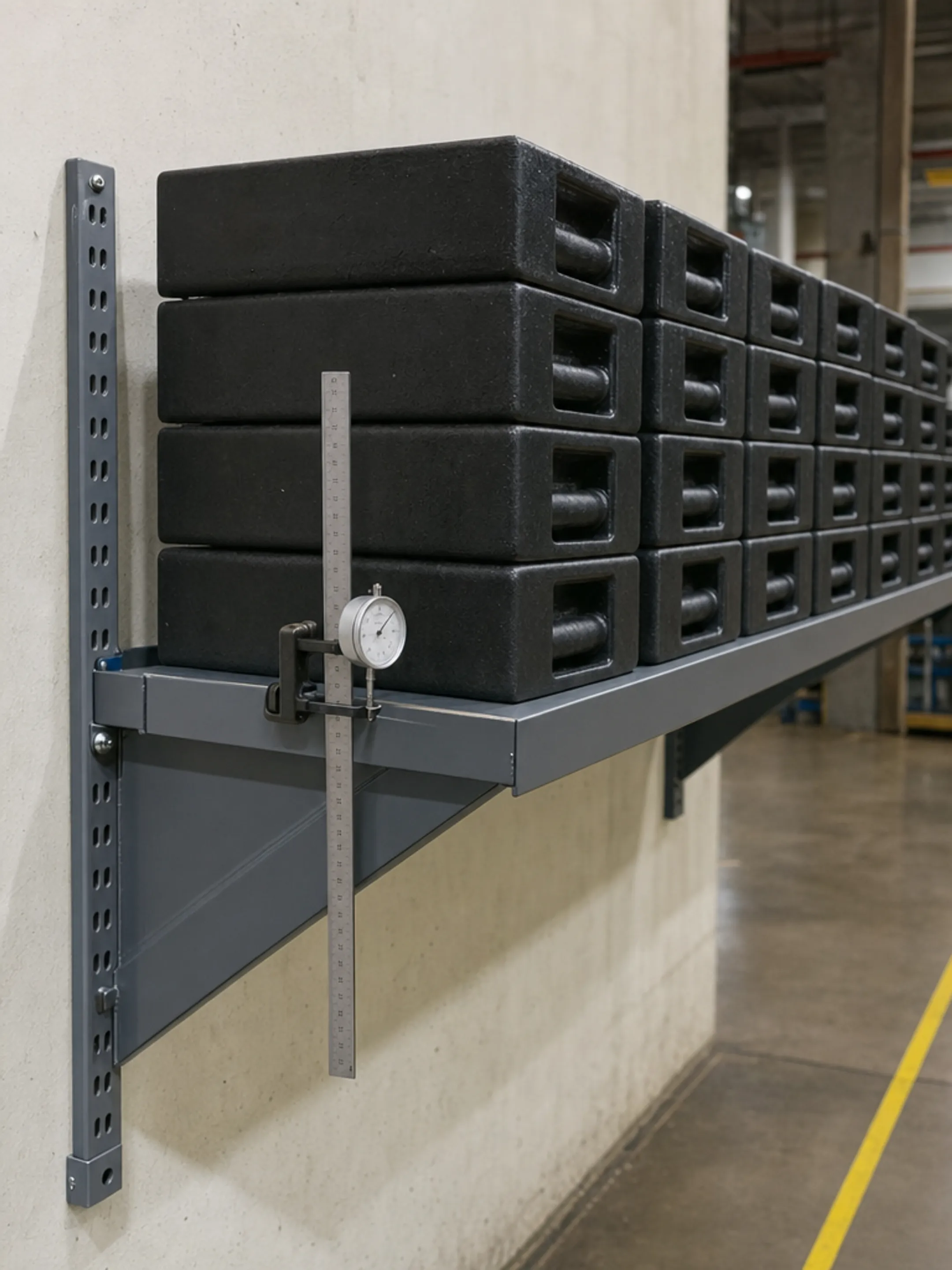

Then test functionally. Apply weight gradually: start light, then increase toward full capacity while watching for flex, movement, or bracket shift. Stop immediately if you see the bracket pulling away from the wall.
Skipping this step is risky. Sagging or pull-out often doesn't show up right away; it develops weeks later under sustained heavy loads. OSHA's general storage requirements (29 CFR 1926.250) reinforce this in commercial settings, requiring stored materials to be secured against sliding, falling, or collapse. Apply the same standard on every retail install: validate load before you stock the shelf.
Common Installation Problems and Fixes
Bracket Won't Sit Flush Against Wall
Problem: A visible gap between the bracket and wall after mounting.
Likely cause: Uneven wall surface, or the bracket wasn't aligned with the true stud center.
Fix: Shim behind the bracket to close the gap, or re-mark and re-drill directly on stud center.
Shelf Sags Under Weight
Problem: Visible bowing or dipping over time, even under moderate loads.
Likely cause: Brackets spaced too far apart, undersized brackets, or the wrong anchor type for the load.
Fix: Add brackets to reduce span between supports, or upgrade to a higher weight-rated bracket and fastener combination.
Bolt Head Breaks During Tightening
Problem: The bolt snaps or strips mid-installation.
Likely cause: Missing or undersized pilot hole, or over-tightening with a power tool.
Fix: Always pre-drill a correctly sized pilot hole. Hand-tighten with a wrench instead of an impact driver. Power tools make it too easy to overshoot torque specs. Simpson Strong-Tie notes that incorrect torque on expansion anchors can cause excessive displacement or premature failure.
Pro Tips for Installing Heavy Duty Shelf Brackets Effectively
- Use masking tape as a leveling guide before making permanent marks, especially across multi-bracket installations
- Keep hardware appearance consistent when mixing stud and anchor mounts on the same shelf so the result looks intentional and finished
- Document your bracket spacing and hardware choices for future reference or warranty claims
- Consider engineered wall systems for retail or commercial spaces that need consistent heavy-duty capacity across multiple sections
Megawall's steel slatwall supports over 50 lbs per linear foot with concealed fasteners and 3-inch-on-center slat spacing. That approach is often more practical than reinforcing every wall section for individual brackets.
Conclusion
Correct bracket installation directly determines shelf safety, weight capacity, and how long the install lasts. Rushing wall assessment or guessing at fastener choice is where most failures start.
Before you put the shelf into full use:
- Assess the wall material carefully
- Choose fasteners rated for your actual load
- Load-test the install
That small time investment beats the cost of a failed shelf and a wall repair.
Frequently Asked Questions
What is the best way to hang heavy duty shelf brackets?
Locate studs first, use fasteners rated for your wall type and load, and level across all brackets before final tightening. This sequence prevents the most common failure points.
How much weight can heavy duty shelf brackets hold?
Capacity varies by bracket design, wall material, and fastener type. There's no universal number. Always check the manufacturer's rated weight per linear foot before loading a shelf.
Do heavy duty shelf brackets need to go into studs?
Studs provide the strongest hold, but rated toggle or masonry anchors work well when studs aren't available or don't align with your spacing needs.
Can you install heavy duty brackets on drywall alone?
Not recommended for heavy loads. Standard drywall anchors max out around 10 lb tension per anchor. You need rated, weight-bearing anchors designed specifically for the load.
What screws are best for heavy duty shelf brackets?
Lag bolts for stud mounting; matching toggle or masonry bolts for other surfaces. Size fasteners to the bracket's hole diameter and your wall's specific requirements.
How far apart should heavy duty shelf brackets be spaced?
It depends on shelf material and load. General rule: brackets no more than a few inches from each end, with additional supports added for longer spans or heavier loads.
